Acme Engineering Prod. Ltd.

5706 Royalmount Ave.
Montreal , Quebec H4P 1K5 Canada

PRODUCTS

Product / Service Lines:

Strainers

37 Products found

Gas Detection Equipment

ACME was the first to adapt instrumentation-style equipment to the building market in the early 1970's. Our equipment is designed to control ventilation systems in buildings, most notably through Carbon Monoxide (CO) gas detection in underground parking garages.

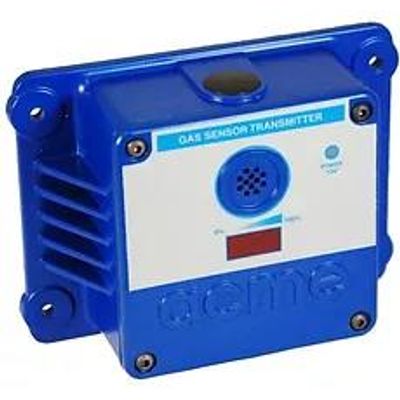

Acme - 40-XP Series - Combustible Gas Sensor-Transmittesr

The Acme Combustible gas sensor-transmitter measures the concentration of the target gas in an enclosed area and produces a proportional analog output signal.

Acme - 40-ST Series - Combustible Gas Sensor-Transmitter

The Acme Combustible gas sensor-transmitter measures the concentration of the target gas in an enclosed area and produces a proportional analog output signal.

Acme - CO2-2000 - Carbon Dioxide Detection & Control Unit

This state-of-the-art instrument measures Carbon Dioxide (CO2) concentrations in the parts per million range (PPM)and is ideal for applications ranging from conference rooms to home gyms. The CO2-2000 is easy to install and support. Measurement output is via a 4-20 mA current loop or a 0-10V interface. Low power consumption makes the CO2-2000 perfect for battery-operated or other power sensitive applications. A clear, bright LCD display option is...

Acme - REF-IR-ST - Refrigerant Leak Sensor/Controller

The ACME REF-IR-ST Sensor/Transmitter is designed to detect the presence of refrigerant leaks in enclosed areas. The REF-IR-ST series employs a high-precision NDIR sensor ideal for gas-specific and accurate measurements of the most commercially used refrigerants. With its 1PPM resolution, 0 to 1000PPM measuring range and operating temperature and humidity characteristics, the REF-IR-ST far exceeds the current ASHRAE 15 requirements. The...

Acme - CO2-EN Series - Carbon Dioxide Monitor-Controller

The CO2-EN Carbon Dioxide Monitor-Controller is designed to provide HVAC systems with economical means of controlling outdoor makeup air to maintain indoor air quality and reduce the cost of heating or cooling the building environment.

Acme - UN-ECH Series - Uniset Stand-Alone Gas Monitor

UNISET is a single-point stand-alone gas monitor for a number of toxic and flammable gases as well as oxygen deficiency. It utilizes state-of-the art sensor technology: electrochemical for toxic gases and oxygen; catalytic bead for combustibles. The UNISET has up to four SPDT relay outputs fully user-configurable to operate at different thresholds and time delays. It also supports an alarm buzzer with a kill switch. A 10-bar graph displays the...

Acme - TW-ECH - Twinset Stand-Alone Dual Gas Monitor

The TwinSet is a stand-alone dual-gas detection unit. In its standard configuration the TwinSet wil have (1) built-in CO sensor and (1) remote sensor that can be for any one of the three gases listed, namely, CO, NO2 or Combustible gas (CH4 C3H8). The TwinSet is a 'system-in-a-box' that provides dry contacts for the activation of fans, dampers and audible/visual alarms at preselected alarm levels.

Acme - ECH-ST Series - Gaspost Sensors/Transmitters

The Acme Gaspost toxic gas sensor/transmitter measures the concentration of the target gas in an enclosed area and produces a proportional analog output signal. The 4-20mA transmitter is designed for standard 2-wire loop-powered operation where the output is supplied via the same pair of wires as the power supply.

Acme - CEL4 Series - Multi-gas Detection and Control System

The ACME CEL4 Series is a microprocessor-based up to 4 channel multi-gas detection and control system that can be used with a wide variety of ACME toxic, combustible & oxygen gas sensors. The sensors can be grouped in any combination. The wiring between the Control Panel and the remote sensors is accomplished by a 4-wire “daisy-chain”. The LCD provides a digital readout of gas concentrations and ON-OFF output level status for each...

Acme - VOC-3 - Refrigerant Leak Detector

The VOC-3 detector is designed for enclosed spaces or mechanical rooms where refrigerant leaks from chillers could pose a danger to personnel. This detector can cover up to 10,000 sq. ft. of clear, open space. It is designed to operate two-speed fans using two dry contacts that close at the appropriate low and high concentration levels for the refrigerant gas being detected. Refrigerants detected include R-11, R-12, R-22, R-62, R-113, R-502 and...

Acme - VOC-2 - Volatile Organic Compounds Detector

The VOC-2 detector is designed for enclosed spaces where chemical reagents or known VOC pollutants could leak into the air and pose a danger to personnel. This detector can cover up to 10,000 sq. ft. of clear, open space. It is designed to operate two-speed fans using two dry contacts that close at the appropriate low and high concentration levels for the toxic gas being detected. Standard calibration is with Toluene for set points at 1000 and 2000...

Acme - DG-EN Series - Diesel Fumes Detection System

The DG-EN is usually installed in bus and truck terminals or maintenance facilities, package distribution warehouses and building loading docks where Diesel fumes pose a threat to indoor air quality. In order to protect the sensor from the Respirable Combustible Dust (RCD) present in Diesel fumes, Acme uses an air pump to draw the sample to the detection unit from the space, where it is filtered and passed to a solid-state infrared CO2 analyzer or an...

Acme - EL Series - Hazardous Gas Detection System

The EL Series brings the accuracy and selectivity of electrochemical-cell sensor technology to the Acme gas detection line. Available for a wide range of hazardous and toxic gases, the EL Series can be ordered with a 4-20 mA proportional output signal, and/or up to four relay contacts for fan control and alarm. Available enclosures include NEMA 3R, 4/12 and 4X, with an available panel heater.

Acme - MGD-EN Series - Diesel Fumes Detection System

The MGD-EN is usually installed in bus and truck terminals or maintenance facilities, package distribution warehouses and building loading docks where both Diesel fumes and Carbon Monoxide (CO) pose a threat to indoor air quality. In order to protect the sensors from the Respirable Combustible Dust (RCD) present in Diesel fumes, ACME uses an air pump to draw each sample to the detection unit from the space, where it is filtered and passed to a...

Acme - CEL(LS) Series - MultiSet Gas Detection And Control System

The ACME CEL(LS) MultiSet series is a microprocessor-based multipoint multigas detection and control system that can be used with a wide variety of toxic, combustible, refrigerant & oxygen gas sensors. The sensors can be grouped in any combination. The wiring between the Control Panel and the remote sensor-transmitters is accomplished via 4-wire 'low voltage' 'daisy-chain'.

Acme - WR Series - Remote Wireless Relay Module

Ideal in facilities where fan starters are located at different areas and are far from the control panel. The Acme WR Series Remote Relay Module operates within a CEW wireless gas detection network, acting as an addressable output to the CEW Control Panel. Each WR Relay Module provides 8 relays for the indirect activation of fans, louvers, etc at programmable set points.

Acme - WS Series - Wireless Sensors/Transmitters

The ACME WS Series toxic or combustible gas sensor/transmitter measures the concentration of the target gas in an enclosed area and transmits this value to the control panel via a 900 MHz or 2.4 GHz wireless medium.The WS Sensor / Transmitter includes a high gain antenna concealed inside the enclosure as well as a built-in battery pack that can be easily accessed and replaced (battery-operated verson). Optionally the WS can also be powered from a...

Acme - CEW Series - Wireless MultiSet Gas Detection And Control System

The CEW Series centralized detection and control system can monitor up to 32 remote detectors via a wireless RS-485 communication link at 900MHz or 2.4GHz, reducing installation costs. While typically used for enclosed vehicular facilities where CO and NO2 (for Diesel fumes) are the gases detected, the panel can also be configured to monitor CO2, Propane, Methane, Gasoline Vapors and other toxics and combustibles, please consult the factory. Remote...

Acme - CEL Series - Multi-gas Detection and Control System

The CEL Series centralized detection and control system can monitor up to 32 remote detectors via a 4-wire RS-485 daisy-chain communication link, reducing installation costs. While typically used for enclosed vehicular facilities where CO and NO2 (for Diesel fumes) are the gases detected, the panel can also be configured to monitor CO2, Propane, Methane, Gasoline Vapors and other toxics and combustibles, please consult the factory. Remote sensors can...

Acme - O2-EL-24 - Oxygen Deficiency Detector

The O2-EL-24 is designed for installation in chiller rooms or other enclosed spaces where refrigerant or VOC leaks will displace oxygen at the floor level. The O2-EL detector has an extremely sensitive electrochemical cell with a 2 year lifespan to monitor minute changes in oxygen levels and transmit variances to a central monitoring panel via a 4-20 mA signal. Acme can also provide control panels for all its 4-20 mA sensors as well as provide single...

QD-REF Series - Quadset Refrigerant Gas Monitor

The Acme Quadset Refrigerant Gas Monitor is designed to detect refrigerant leaks in enclosed areas. The Monitor utilizes a sophisticated NDIR sensor specific to any one of the commercially available refrigerants. It can monitor over a range of 0-1000ppm with a resolution threshold as low as 1ppm.

CEW4 Series - Wireless Multiset Gas Detection and Control System

The CEW4Quadset system monitors up to 4 remote sensors wirelessly over a 900MHz or 2.4GHz network. This results in substantial savings in labor and material costs during installation. While typically used for enclosed parking facilities where CO and NO2 (for Diesel fumes) are the gases detected, the CEW4 can monitor other toxic gases such as carbon dioxide, ammonia and hydrogen sulfide or combustibles such as methane and propane. System configuration...

CEW Series - Wireless Multise Gas Detection and Control System

The ACME Wireless MultiSet series is a microprocessor-based multipoint multigas wireless detection and control system that can be used with a wide variety of ACME toxic, combustible, refrigerant & oxygen gas sensors. The sensors can be grouped in any combination. The communication between the Control Panel and the remote sensor-transmitters is accomplished through a 900 MHz or 2.4 Gl lz wireless network.

CEW(LS) Series - Wireless MultiSet Gas Detection and Control System

Strainers

Acme - ACRS - Automatic Scraper Strainer

Automatic strainer for the removal of solids from intake, process and effluent flows. The ACME Automatic Scraper Strainer has been designed to remove solids from 150mm in size down to 75 micron particles. The general literature piece describes the various connection options available as well as the advantages of a scraper strainer over a backwash strainer. These strainers are available with connections from 1' up to 36' in fabricated carbon steel,...

Scraper Strainer Advantage Over Backwash

Acme scraper strainers resist clogging and fouling when faced with large solids and high solids concentration. Backwash strainers cannot remove oversize solids and will clog, requiring manual removal of the solids and cleaning of the filtration screen.

Presentation on Automatic Scraper Strainers Line

A presentation highlighting recent contracts sold into the Middle Eastern marketplace.

Industrial Applications for Acme strainers line

Summary of areas where an Acme scraper strainer can be installed in industrial marketplace.

ACME - ACRS Sizing Handout line

Sizing table for typical flow rates for Acme Scraper Strainers, in Imperial and Metric measurements.

Water and Wastewater Applications for Acme strainers line

Summary of areas where an Acme scraper strainer can be installed in the water and wastewater marketplace.

Boilers and Super Heaters

ACME has developed a reputation as a high quality, custom manufacturer of electric hot water and steam boilers, superheaters and other electric 'wet heat' equipment. While the market for this type of equipment is typically within an 800 kilometer radius of Montreal, ACME has exported boilers to Japan, China and Africa because of the special nature of the projects involved. We also manufacture a gas fired steam superheater for temperatures up to 1200 deg. F and pressures up to 800 PSIG, available in all world markets on a custom quotation basis. We commonly produce design-built products where other manufacturers have refused to quote.

Acme - ES Series - Large Electric Steam Superheaters

Acme Electric Steam Superheaters are available for use with steam boilers as an auxiliary piece of equipment. Our superheaters are all custom made and built to meet the specific design requirements of each application. A superheater increases the temperature of the steam but does not increase the latent heat of evaporation. This means that heating with supuerheated steam is similar to heating with hot air. The material or medium being heated will...

Acmetherm - CEJS Series - High Voltage Electrode Steam Boiler

The model CEJS High Voltage Electrode Steam Boiler is the proven leader with more hours of operating experience over a wide range of applications than any competitor. The CEJS electrodes are vertically mounted around the inside of the pressure vessel which enables the CEJS to produce maximum amounts of steam in a minimum amount of floor space.The CEJS operates at existing distribution voltages, 4.16 to 25 KV with exceptional efficiency - up to 99.9%...

Acme - C-520 Series - Electric Hot Water Boilers

Acme electric boilers are economical units that deliver maximum kilowatts in minimum space requirements. Ideal for new boiler applications or as a replacement unit to upgrade existing applications. This model takes up less floor area and fits through smaller openings than oil or gas-fired units. Easy and economical to install, available in sizes from 9 KW to 2600 KW at all common voltages up to 600 V, 3PH.

Acme - C-620 Series - Electric Steam Boiler

A compact, reliable source of steam for space and process heating, these immersion element boilers are virtually 100% energy efficient. They are completely packaged boilers ideally suited for applications requiring from 30 to more than 10,000 pounds of steam per hour. ACME Steam Generators are based on more than half a century of accumulated experience in the electric heating field. Easy and economical to install, ACME Steam Generators are available...

Acme - ABS-CEJS-24SC-01 - Auxiliary Boiler Systems

For the past 45 years ACME-AEP has manufactured the key components of auxiliary boiler systems, namely boilers, superheaters, secondary pressure vessels and associated control systems. The Acme ABS Packages are up to date solutions to current problems.

Acme - GS Series - Gas Fired Steam Superheaters

ACME Steam Superheaters are available for operating pressures of up to 800 PSIG and temperatures up to 1200 deg. F. Steam flow is only limited by practical size considerations. Pressure sections are built to ASME code with National Board or CRN registration. Burners are AGA or CGA listed with UL, CSA or other gas train standards as requested or applicable. The ACME Steam Superheater is delivered to the site prewired and prepiped requiring only steam,...

Acme - ES Series - Small Standard Electric Steam Superheaters

ACME Electric Steam Superheaters are available for use with steam boilers as an auxiliary piece of equipment. Our superheaters are all custom made and built to meet the specific design requirements of each application. A superheater increases the temperature of the steam but does not increase the latent heat of evaporation. This means that heating with supuerheated steam is similar to heating with hot air. The material or medium being heated will...
