Insertion Mass Flow Meters
Combining the backbone of Kurz technological innovations with the simplest process mounting methods, the Insertion Mass Flow Meters provide unmatched repeatability and NIST traceable accuracy to processes gas mass flow measurements from 2.5 inch up to the largest stacks and ducts.
Kurz - Model 454FTB-WGF - Insertion Mass Flow Meters (Single Point)
The Series 454FTB-WGF represents the first thermal mass flow meter intended for use in Wet Gas and condensing environments. This product is specifically designed for Biogas measurements in digester and landfill applications. By utilizing advanced signal processing and sensor technology, the process flow signal is independent from the effects of moisture in the process gas stream.
Kurz - Model 454FTB - Insertion Mass Flow Meter (Single Point)
The Kurz Series 454FTB is the premier Single-Point Insertion Mass Flow Transmitter for industrial gas flow measurements. The 454FTB uses the most advanced microprocessor technology, realtime sensor and electronic diagnostics, and temperature compensation to provide the highest repeatability, accuracy, and reliability in the industry. The process pressure rating is up to 300 PSIG, the process temperature rating is -40 to 260°C and -40 to 500°C,...
Model K-BAR 2000B - Insertion Mass Flow Meter (Multipoint)
The K-BAR 2000B utilizes the patented B-Series technology to measure gas velocity and temperature at several points across the span. Using the FD2 Fast Dual Metal Clad™ sensor, the K-BAR 2000B calculates the mass, velocity, and temperature at each point, and the Series 155 Mass Flow Computer uses this data to provide the average velocity and average temperature within the process. It is ideal for ducts and stacks that have wide-ranging velocity...
In-line Mass Flow Meters
Providing partial or complete in-situ calibrations, the Kurz Instruments inline flow meters are designed to provide outstanding “plug and play” accuracy on gas flow measurement in applications where the pipe is less than eight inches in diameter. Greater out-of-the-box accuracy is achieved by calibrating the instrument in a spool piece which becomes a part of the process line.
Kurz - Model 534FTB-CL2 - Inline Mass Flow Meter
The Series 534FTB-CL2 is specifically designed for chlorine gas measurement in the water treatment industry. It features polyvinyl chloride material with built-in inlet/outlet piping reducers/expanders and exceptional immunity to upstream/downstream flow disturbances caused by elbows, valves and line size changes. Because of this, the output has very low flow noise, exceptional accuracy, repeatability and turn-down ratio. The Series 534FTB-CL2 has 3...
Kurz - Model 534FTB - Inline Mass Flow Meter
The Series 534FTB uses Kurz MFTB Technology with the advantages of built-in inlet/outlet piping reducers/expanders and exceptional immunity to upstream/downstream flow disturbances caused by elbows, valves and line size changes. This creative design eliminates the need for field fabrication and assembly of inlet and outlet mating pipe sizes. The Series 534FTB has 8 basic Models covering mass flow ranges to 2350 SCFM and in line sizes from...
Kurz - Model 504FTB - Inline Mass Flow Meter
The Series 504FTB utilizes the same Kurz MFTB Technology as above but is designed for applications where flow disturbances or line size changes is not an issue. The 504FTB has 10 models covering Mass Flow ranges to 1000 SCFM for inline sizes from ½” to 4” pipes.
Portable Air Velocity Meters
The beginnings of “hot-wire” technology remain traceable in the functionality and design of Kurz Portable Air Velocity Instruments. Hot-Wire began its career as a simple laboratory instrument; Kurz has models that demonstrate the evolution from those beginnings to the true Industrial workhorse that thermal transfer technology has become.
Kurz - Model 2441 - Lab Grade Portable Flow Meter
The Model 2441 is especially convenient for Industrial Hygiene and HVAC measurements. It is a very sophisticated micro-processor version of the widely used and appreciated Series 440 Portable Air Velocity Meter. The 2441 uses the well-known 'CD' dual-sting ceramic sensor mounted in a 1/4' diameter, 13' long sensor support with a sensor shield/extender. It includes an all-metal display module, battery charger, carrying case, many options and...
Kurz - Model 2442 - Industrial HVAC Portable Flow Meter
The Model 2442 has been specifically designed for HVAC Applications, such as air velocity traverses, air balancing and other tasks. It has a unique flexible 'gooseneck' section between the sensor element and the sensor support, as well as an easily extendable telescopic wand which allows measurements at the ceiling height. The 'gooseneck' section can be bent to 90° so that the user can orient the sensor element perpendicular to the air velocity...
Kurz - Model 2443 - Expandable Probe Portable Flow Meter
The Model 2443 Portable Air Velocity Meter uses the Metal-Clad 'MC' sensor. It is designed to be used in industrial ventilation and process applications in which a small, rugged sensor is required. Most applications are for velocity traverse in small to moderately sized pipes and ducts. The sensor support is 3/8' diameter, 13' long with a probe shield which can be reversed to be used as a probe extender.
Kurz - Model 2444 - Heavy Industrial Portable Flow Meter
The Model 2444 is a rugged, industrial quality portable air velocity meter for a wide variety of velocity measurement applications in pipes and ducts. It uses the well- respected Kurz FD Fast-Dual MetalClad sensor and can be used at temperatures to 200°C. It is extraordinarily flexible as it can be extended in the field to accommodate both large and small ducts. The Model 2444 sensor support consists of the sensor section which has the FD...
Kurz - Model 2445 - High Temperature Probe Portable Flow Meter
The Model 2445 Portable Velocity Meter is a rugged, portable air velocity meter for a wide variety of very high temperature (500°C) industrial applications. The Model 2445 is mainly used for velocity, flow rate and temperature traverse measurements in larger pipes, ducts and stacks. Most applications are coal-fired power plant stacks, primary and secondary air ducts. The Model 2445 has a fixed length 3/4' diameter sensor support and is rated at...
Kurz - Model 490-IS - Portable Air Velocity Meters
The Series 490-IS Mini-Anemometer incorporates Kurz sensor expertise into an inexpensive miniature Thermal Air Velocity Meter that you can take anywhere. The 490-IS is ideal for velocity measurements for EPA and OSHA emission regulations for a wide variety of vapor emission sources. The 490-IS is intrinsically safe!

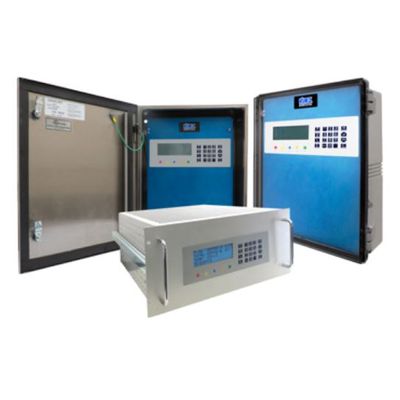

Mass Flow Computers
Known as ADAM, these “Smart” Mass Flow Computers are state-of-the-art, microprocessor-based, versatile system transmitters and flow controllers. The various models operate one or more Kurz Mass Flow Elements and Transmitters, Isokinetic Sampling Systems, Series 730 Electric Rotary Ramp Control Valves, as well as variable speed motors and position input devices such as Air Control Vanes, Dampers and Valves.
Mass Flow Control Valves
The Series 730 valves are unique electrically-actuated loop-powered flow control valves. Unlike conventional electrical control valves, the Series 730 combines the electric drive motor, rotor, the valve body, and limit switches into a well-designed, integrated package.
Model Series 730 - Mass Flow Control Valves
The diameter, separation and the helical depth were designed to provide a nearly linear flow coefficient (Cv) with angular rotation. A simple high torque gearmotor (24 VDC) was selected for cost and simplicity. Since the Series 730 is a 'fail-as-is' design, the motor is only used when changes are required, which greatly extends the motor life. The Series 730 combines the electric drive motor, the valve body, rotor and limit switches into a...
Isokinetic Samplings Systems
Custom by any measure, Isokinetic sampling systems combine high accuracy mass flow measurement in the process with effective sampling nozzles and fine control and measurement of the sampling rate, so that you can be assured that your constituent reporting is correct and accurate. Widely used at Department of Energy (DOE) Nuclear, and Defense facilities, Isokinetic sampling ensures that you collect a truly representative sample of the gas/emission.
Model Series 220 - Isokinetic Samplings Systems
The Series 220 has major advantages over traditional sampling systems. The Series 220 incorporates the unique Kurz Axial Flow-Low Particle Loss sampling nozzle design, developed especially for the DWPF at Savannah River Site. Rather than use a single “shrouded nozzle” as suggested by ANSI N13.1-1999, we use our low-loss axial flow nozzles to achieve the same objective—lower particle loss. Kurz believes its’ approach is more...
