APS 600/ 800 - Roll-Matic

Minimum space requirement and high compaction results lead to highest cost savings, since expensive and space-consuming containers can be replaced.

A matter of course is the BERGMANN’s high quality standard of a product with a well-developed technology and design as well as the quiet low-maintenance hydraulic drive.

• Waste compactor for recyclable waste and general refuse
• Crushing and compaction of waste by right/left rotation of a specially equipped steel drum
• Continuous feeding of waste
• Compaction in a 600- and/or 800-liter wheely bin

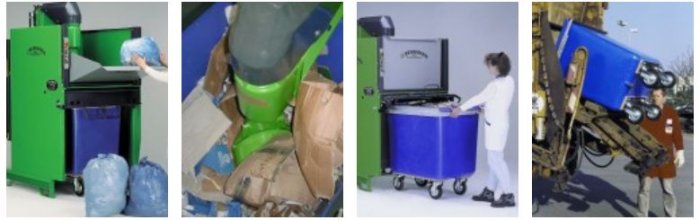

1. After breaking in the container, a continuous filling can take place via the large-dimensioned filling chute by everyone.
2. Collecting, shredding and compacting the waste by means of rotating special roller.
3. The wheely bin with the highly compressed material can be easily removed and transported.
4. Subsequent pick-up by disposal companies.

• Hotels
• Canteen kitchens
• Fast-Food-Restaurants
• Supermarkets
• Restaurants
• Food industry
• Hospitals
• Old people's homes
• Trade
• Service companies

• Invented and developed by BERGMANN with decades of experience
• Standard version already with filling chute
• Compaction of the waste results in a reduction of the number of emptying journeys, keeping them to a minimum = drastic savings due to fewer disposal journeys
• Continuous filling – also with opened filling chute
• Compaction results of up to 10:1 by the special Power Crusher Roller, which collects, shreds and compacts waste
• Particular suitable for collecting refuse as well as re-usable waste (e.g. cardboard, packing foils, polystyrene, fruit boxes, cans, etc.)
• Reduction in transport costs of up to 80%
• Operation of Roto-Compactors is possible without training or instruction
• Easy operation by simple push buttons
• The wheely bin facilitates easy handling of the compacted waste
• The assembly can take place directly on the spot within buildings
• The costs of the waste handling and operating costs are reduced
• Is ideally suitable for continuous filling via chutes or conveyor belts
• Low-maintenance due to hydraulic drive
• Guarantees a clean working environment
• Easy emptying and convenient transport of compacted materials
• Minimized utility space for waste storing and thus saving storage costs of conventional containers
• The Roto-Compactor replaces expensive and space-consuming large containers
• Designed for intensive, long-term use
• Low operating noise level
• Integral solution for a clean, hygienic and, above all, space and cost-saving waste handling
• Proven worldwide with over 20 years at highest quality standards
• Well-developed technology and design due to long experience
• High availability and quick supply of spare parts!
• Worldwide service partners

• Small space requirement of only 1.15 x 1.64 m
• Large loading aperture (approx. 923 mm wide)
• Height of the loading aperture - approximately 1,480 mm
• Max. required height clearance 2.30 m
• High processing capacity
• Low operating noise of only max. 65 dBA in 1 m distance
• Electrical protection class IP 54
• Filling via chutes or conveyor belts possible
• Easily accessible hydraulic unit, providing ease in servicing work
• Machine CE-certified
• Completely „Manufactured in Germany“ by qualified and experienced staff

• Standard drum for paper and cardboard
• Filling chute with only 1,480 mm filler height
• Electrical protection system IP 54 (dust-proof, splash-proof)
• Well-known brand name for hydraulic pump
• Auto-timer
• Oil level control
• Operating hour meter
• Overload protection

• Special plastic pointed roof made of fibre glass reinforced plastic
• electric eye for continuous use
• Fill level signal via siren or strobe lights
• Water sprinkling system against dust formation
• Ozone generator against unpleasant odours
• Galvanized for application in an aggressive environment
• Protection system increased on IP 65 (dust-proof, hose-proof)
• and much more
• … ask for our special designs
