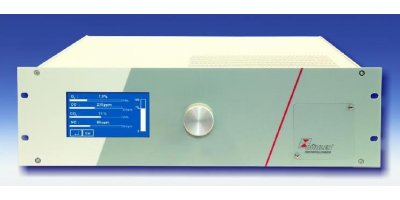

BA 3 - Multi-Channel - Gas Analyser Select

The analyser is equipped with a touchscreen. In combination with a well-arranged menu structure, intuitive and user-friendly operation is assured.

All necessary status-, threshold-, and alarm messages for effective monitoring are provided as analogue and digital signals. Comprehensive analysing functions (as for example correction of interfering gas components and graphic display of measurement curves) complete the user-friendly interface.

• Measurement of up to four gas components
• 02-measurement: paramagnetic, electrochemical or/and Zr02
• IR-measuring cells (NDIR)
• Modular design, easy to maintain
• User-friendly touchscreen
• Graphical flow display
• Tested on the basis of EN 15267-3
• All relevant threshold and status alarms
• 4-20 mA output signal for each channel
• RS-232 interface
• Integrated pumps optional
• Pressure and temperature compensation optional

Uniform Design and Scalability:
No matter if the configuration consists of a simple electrochemical cell for oxygen measurement or of a complex multi-component device with calibration .functions and interface, the user gets an analyser based on a uniform design and menu structure

Flexibility:
Measurement cells can be combined in any user-defined configuration. The BA 3 select even allows subsequent upgrading of measurement cells on-site, if additional measurement requirements occur. In addition, flow meters, filters, pressure and temperature compensation as well as NOx converter can be integrated.

Widespread Field of Application:
From Ambient air monitoring to analyzing combustion processes, the BA 3 select is applicable to a large range of applications.

Cost Efficiency:
Based on the standardised basic design, the documentation is unified which saves cost with respect system and plant documentation veil as for training of operators and maintenance personnel.

Easy servicing:
The modular design of the analyser results in easy maintenance, which reduces costs in this field
well.

Basic Data

• 4,7' graphic display with touchscreen
• Options and modules are listed and can be managed
• Self-diagnotics function
• Selection of language
• Automatic calibration
