• Pulse-controlled step up and step down for optimal adaptation to existing signal transducers
• For each chemical a matching liquid end
• Thus universal use possible
• Drive with almost no wear
• Excellent permanent operation properties
• Optimal price/performance ratio
• Energy saving of 50 % thanks to higher efficiency
• Adjustable, integrated pulse step up and step down
• Optional: Relay module, quick and easy to refit

• Capacity range 0.74-32 l/h, 25-2 bar
• Continuous stroke length adjustment from 0-100 % (recomm
• Supplied in PP, Acrylic, PVDF, PTFE, stainless steel
• Patented deaeration for PP, Acrylic and PVDF
• Self-deaerating dosing head type in PP and Acrylic
• HV liquid end for highly viscous media
• Power supply 100 - 230 V as standard
• 10-setting stroke frequency adjustment from 10-100 %
• External control via volt-free contacts with impulse for spee
• Connector for 2-stage level switch
• 3 LED display for operation, warning and fault indication

Application focuses Metering of chemicals and disinfectants:

• Drinking water and swimming pool water treatment
• Chemical applications
• Process engineering
• Cooling water circuits

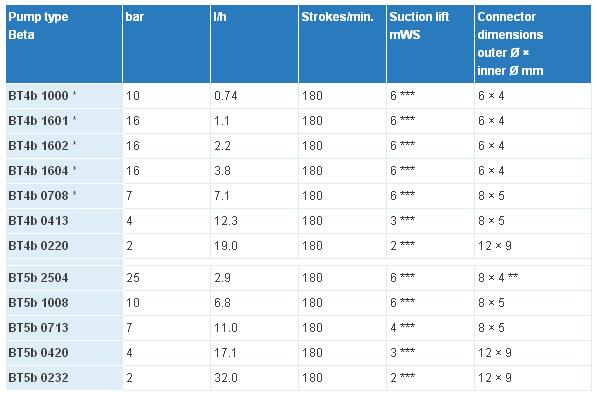

1. Reduced pressure 4, 7 and 10 bar pump types are available for specialised applications, e.g. for use in swimming pool systems. Further information on request.
2. 6 mm inner diameter in stainless steel version.

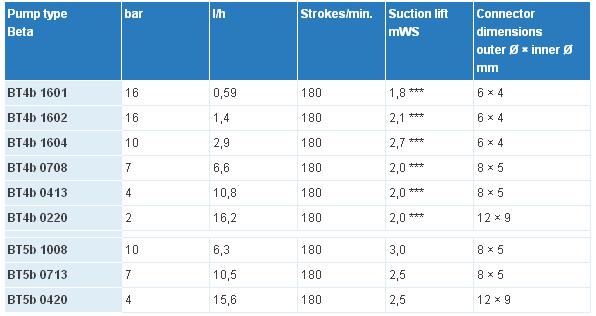

3. Suction lift readings when liquid end and suction tubing are full, or for self-degassing liquid end when the suction tubing contains air.

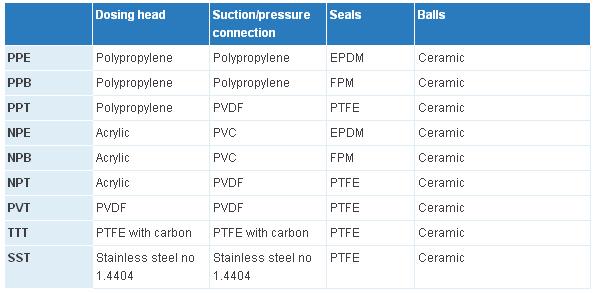

Dosing diaphram with PTFE-coating.
FPM = Fluorine Rubber
