0 Bono Zon - Ozone Plant

(0 votes)

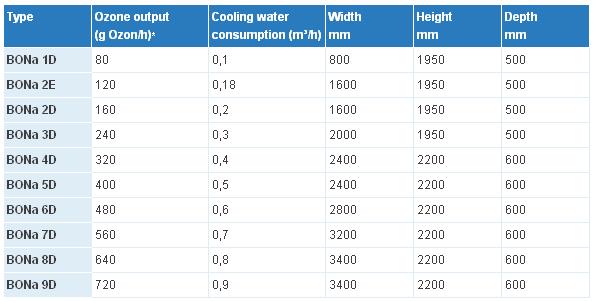

The BONa range includes ozone production equipment with a performance spectrum of 80 – 720 g ozone / h. The compact design of this range with its integrated gas conditioning application are distinctive features. BONa ozone plants work using positive suction pressure and are therefore particularly reliable when it comes to operation.

DOWNLOADS

Leaflet - Ozone Brochure

» View All

Advantages

High operational reliability: positive suction pressure guarantees the greatest possible protection against ozone gas leaks
Simple operation thanks to its stored programme control and clearly visible display and operating control panel
Minimal operating costs: Load-dependent regeneration of air supply and therefore considerably reduced coolant requirement

Contact Now/Request quote

Application Areas

Treatment of swimming pool water (disinfecting breakdown of trihalomethanes and chloramines)
Treatment of drinking water (oxidation of metals such as iron, manganese, arsenic and organic contaminants)
Cooling water disinfection
Water preparation in zoological pools and aquariums
Beverage industry: removal of iron and manganese from drinking water, microbiological protection during filling

Contact Now/Request quote

Features

Ozone-producing modules made from stainless steel
Automatic, electronic identification of excess current linked to safety cut-out even with part-load operation
Stored programmed processor control, which controls all processes and issues fault reports if there is a malfunction
Easy-to-read display and operating panel: the ozone production process is shown in a flow diagram. LED displays keep the operator informed about the particular operating status and adjusted values e.g. volume flow (gas application), primary voltage and current are displayed.
Full control including for the injector booster pump
Ozone producers (ozone generators) which have been optimised for minimum power consumption Performance requirement 18.7 Wh/g
Continuous adjustment of ozone production to requirement using a regulating transformer, which if required is equipped with an electrical actuator
Control for the pressure booster pump and protection are already integrated into the electrical cabinet
Easy-to-read display with operational and malfunction lights together with digital measuring instruments, integrated into one display panel
Operation with positive suction pressure guarantees protection from ozone gas leaks
Preparation of air using high-efficient adsorber drier. Thermostatically controlled regeneration ensures an optimum dew-point
BonoZon plants comply with the German Standards for Ozone Production Plants DIN 19627
