CEDI Systems - Continuous Electrodeionization

CEDI systems polish reverse osmosis permeate to produce high purity water of up to 18 MΩ.cm. Flow rates from 1.4 to 40.8 m3/hr.

Features & Benefits

Features & Benefits


  • Chemical free operation, no regeneration downtime ; continuous flow, consistent water quality
  • Skid-mounted, standardized systems ; short lead-times, quick installation and start-up
  • Up to 8 CEDI modules per skid ; flexibility, high flow rates

CEDI Modules

CEDI Modules


  • Double o-ring seal ; leak-free operation
  • Completely filled concentrating compartments ; no need for recirculation pump and brine injection
  • Plate-and-frame arrangement gives even distribution of fluid and current flow ; improves performance and module longevity

Applications

Applications


  • Food & beverage industry
  • Electronics
  • Power
  • HPI/CPI
  • High pressure boiler feed
  • Industrial process water


Related Services
Local after-sales service and support teams offer preventative and corrective maintenance programs to ensure the long-term, efficient operation of installed plant.

Hydrex Chemicals
Hydrex 5000 water treatment chemicals from Veolia Water Solutions & Technologies should be used for cleaning and sanitization.

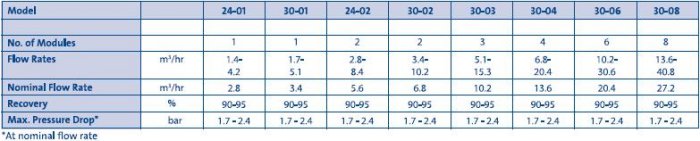

System Performance

System Performance

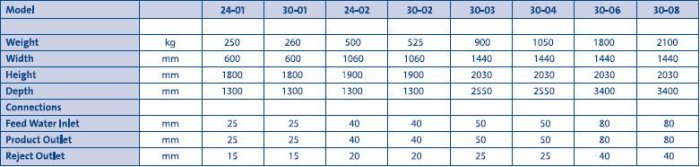

System Dimensions, Weight and Connections

System Dimensions, Weight and Connections



Material Specification

Material Specification

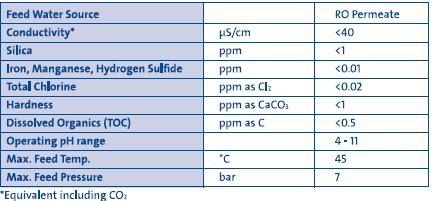

Feed Water Supply Quality

Feed Water Supply Quality



Veolia Water Solutions & Technologies
Veolia Water Solutions & Technologies
Aqua House, 2620 Kings Court, The Crescent, Birmingham Business Park
Birmingham B37 7YE
