Centrifugal Separators For Industrial Use

Centrifugal sedimentation is often a very good and economical alternative to other separation processes such as:

• Filtration: based on particle size,
• Micro-Filtration: based on particle size in the sub-micron range,
• Flotation: based on physicalchemical behaviour, i.e. surface tension. In many cases centrifugal sedimentation and another complementary technology are combined to achieve the required process results.

• The most common advantages of centrifugal sedimentation, better known as Centrifugal Separation are:
• compact size of equipment,
• low capital investment,
• versatility,
• ease of use,
• low operating costs,
• high performance.

The basic principle of separation by sedimentation allows for the simultaneous separation of two or three different, immiscible substances. PIERALISI Vertical Separators that make use of this latter separation regime are called three-phase separators. None of the alternative principles mentioned above can achieve this result. Sedimentation is the physical process whereby suspensions and emulsions (or a combination of both) are exposed to gravitational force, either the earth’s gravity or by using a centrifuge. By applying g-force, the droplets and/or particles acquire settling velocity (vg) and are sent to the bottom/wall of the container/centrifuge bowl.

Settling velocity (vg) increases with:

• bigger particle diameter,
• higher density difference,
• lower dynamic viscosity of the fluid environment.

Settling velocity can be estimated via a well-known equation known as Stokes’ Law

Sedimentation is used in many industrial processes where it is necessary to separate substances that are mixed together (dispersion). With a suitable recipient and the time needed to complete the sedimentation process, the two or more substances with different densities will be separated (stratified) within the recipient, the lightest going to the surface, the heaviest to the bottom.

But what can we do if we do not have enough time or if we want to increase capacity? Going back to Stokes’ Law, to obtain an higher settling velocity and consequently to accelerate the sedimentation process, we can replace gravitational acceleration “g” by centrifugal acceleration “ˆ2 r”. The centrifugal acceleration “ˆ2 r” produced in a Pieralisi Vertical Separator is up to ten thousand times higher than the ordinary force of gravity “g”. As a consequence, settling velocity is up to ten thousand times faster, and separation can be achieved in a very short time and/or using very small volumes.

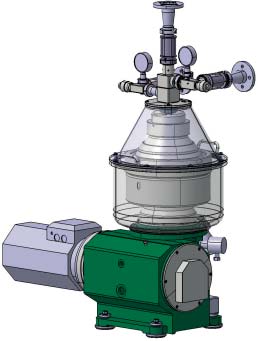

Pieralisi Vertical Separators combine very high rotational speed, a unique design and special materials. They generate a very high centrifugal force which, when used for sedimentation purposes, ensures extremely efficient equipment. The mixture to be separated is forced through a conical disc stack, where multi-layer sedimentation takes place. The separation happens very quickly as the mixture passes through the parallel thin channels of the disc stack. A medium-sized Disc-Stack Separator, when using high centrifugal force, can be compared to the efficiency of a sedimentation tank with a surface area of 60,000 m2, the same size as 10 football fields. In technical terms, this separator hosts an “equivalent settling area” of 60,000 m2.

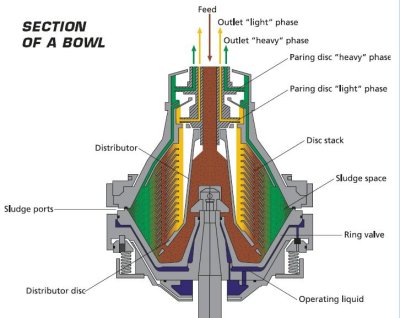

Thousands of “g”s are produced in the bowl of the Disc Stack Separator, the centrifugal force being the product of the high rotational speed and the large size of the bowl. The rotation is generated by an electric motor connected to the horizontal shaft by means of an elastic coupling or clutch. Thanks to the gear ratio produced by specially-designed gears, the movement is transferred to the vertical shaft. The bowl is assembled on the conical top-end of the vertical shaft. The processing liquid is fed into the centre of the bowl through the stationary feed pipe. Subsequently the inflow is accelerated by means of specially-designed accelerators, forced in the first instance to the periphery of the bowl, and then through the discs where multi-layer separation takes place. The separated liquid(s) flow to the top of the bowl where they are discharged by overflow or by centripetal pumps. The solids captured via the described settling process are collected at the periphery of the bowl, and then discharged intermittently. This discharge is activated by a hydraulic system located underneath the separation area. In essence, the solids are discharged via openings at the periphery of the bowl which are opened and closed by the down- and upwards movement of either a sliding piston or bowl bottom (see picture).

Construction materials
The structural parts of the bowl are made of special stainless steel, the inside parts in contact with the product are made of suitable materials for the processing environment: stainless steel, brass or bronze. The housing of the Vertical Separator is in stainless steel or aluminium and cast iron. The gearbox is made of painted cast iron or cast iron coated with stainless steel. The gasket material is always selected according to the process media.

Transmission
The movement is always generated by an electric motor and is transmitted by means of:

• clutch and worm gear,
• flexible coupling worm gear,
• set of pulleys and flat belt.

A special transmission version makes use of a high-speed motor coupled directly to the vertical shaft.

Feeding and discharge of process liquids

The mixture generally is fed in through a stationary feed pipe in the centre of the bowl. The separated liquid may be discharged from the Vertical Separator by an overflow or by one or two built-in centripetal pumps.

Sanitary version
Specially-designed all-stainless-steel Separators, designed to be used with a CIP cycle for cleaning purposes. This version is designed for the easy sanitization of all parts in contact with the product and requires with no manual operation.

ATEX version
Specially-designed and certified Vertical Separators, designed to be installed in hazardous areas and for the treatment of potentially inflammable products, i.e. Separators complying with II2G EEx cp IIB TB4. These separators are inactivated by means of nitrogen gas to minimise the risk of ignition and to fulfil ATEX requirements.

Hermetic version
Hydro-hermetic device installed inside the bowl, designed to ensure that contact with the surrounding environment is avoided, and to prevent oxidation and gas leaks.

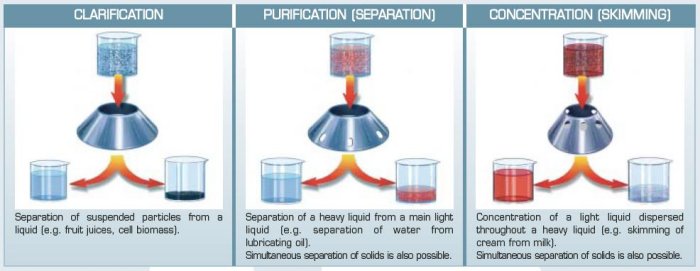

Vertical Disc-Stack Separators are normally designed for one type of separation only, but in some cases, more versatile versions are available that can carry out two different types of separation. Below is a list of the range of disc stacks and bowl designs used for different types of separation.

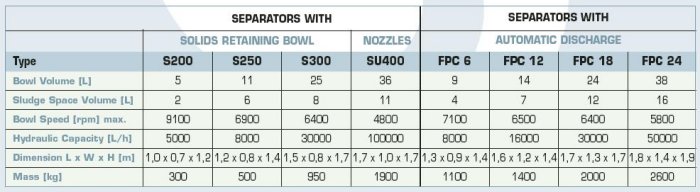

PIERALISI Disc-Stack Separators are able to simultaneously process dispersions of two liquids and one solid. The Pieralisi product range offers three main equipment solutions: one with solids retention (requiring manual cleaning) known as the S-Type, one equipped with nozzles that allow continuous solids discharge, known as the SU Type, and the other with automatic, intermittent solids discharge, known as the FPC-Type. The tables below show types and sizes, with some general indications of dimensions.

Environmental Processes

• treatment and disposal processes of sludge from municipal and industrial waste water
• drying of animal slurry   drying of biomass
• thermal sludge drying

Chemical Processes

• production processes involving intermediate or end products and integrated recycling and recovery processes
• processes within HDPE, PVC and PP polymer production
• production processes for the pharmaceutical and biotech sector
• minerals and ores production processes
• production processes for non-fossil fuels, such as biodiesel and ethanol

Recycling

• treatment processes for drilling mud
• treatment and recovery processes for industrial fluids   recycling of polymers and their respective recyclables
• recycling of service water in industrial processes

Oleo-chemistry

• production processes for oleo-chemistry Derivates
• refining processes for edible vegetable oils, excluding olive oil

Mineral- Fuel and Lube Oils Processes

• purification and conditioning of fuels
• purification of lube oils
• treatment and recovery of mineral and fuel oils
• treatment of slop-oils from

Animal-Based Products

• treatment of by-products from the fish-processing and meat-processing industries

Food Production

• processing and recovery of non-liquid food products
• processing of citrus fruit
• wine and sugar processing
• recycling of food-related products

Dairy Products and Juices

• production processes of dairy and cheese products   recycling of related waste materials
• processing of fruit and vegetable juices.
