CT670 - Compost Turner

• Improve your composting effort with patented elevating face technology that completely turns all of the compost on the first pass with a 6’/1.8 m wide windrow..
• Build better windrows -- Four metal vanes direct the material off the elevating face into a neatly formed windrow as it leaves the machine.
• Take control by using the handy tethered remote, which allows you to control the CT670 from the seat of your tow vehicle.
• See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

For a decade, Vermeer has been providing equipment to the composting market with its extensive tub and horizontal grinder line. Now Vermeer offers compost turner equipment with the elevating face technology to complement our line of grinders — providing customers with a comprehensive line of compost equipment solutions.

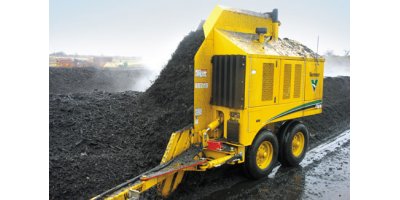

The Vermeer CT670 is a pull-type compost turner featuring the patented elevating face technology designed to lift and tumble compost material up the face of the compost turner and discharge at the rear of the machine. This process introduces more oxygen into the compost and helps provide proper aeration of the windrow. This innovative process does not degrade the compost material and helps decrease cycle times.

Capable of turning a compost pile up to 12' (3.7 m) wide and 6' (1.8 m) high in two passes, the CT670 can process up to 2000 cu yd (1529 m3) of compost per hour.

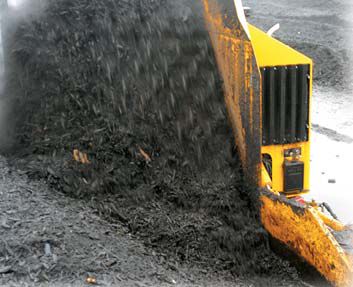

Patented Elevating Face. The elevating face technology has the potential to turn up to 100 percent of the compost pile, from the pad up, on the first pass.

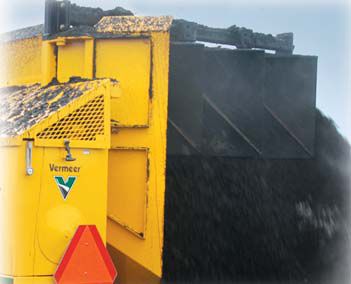

Rear Vanes. Three metal vanes, located at the rear of the elevating face, help direct material flow off the face and back into a windrow. This feature eliminates the need for additional equipment to re-form the windrow after turning.

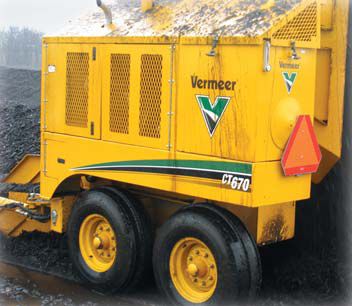

Self-Contained Engine. A 48-hp (35.8-kW) Cummins Tier 3 4-cylinder diesel engine provides efficient horsepower for the elevating face. The hydraulics required to operate the tongue and face functions are onboard the turner as well.

General

Weight: 8000 lb (3628.7 kg)
Tongue weight: 800 lb (362.9 kg)
Transport length: 17.8' (5.4 m)
Operating length: 17.9' (5.5 m)
Transport width: 8.4' (2.6 m)
Operating width: 9.3' (2.8 m)
Transport height: 8.8' (2.7 m)
Operating height: 8.6' (2.6 m)

Engine

Make & model: Cummins A2300
Cylinders: 4
Horsepower: 48 hp (35.8 kW)
Torque: 111 ft-lb (150.5 Nm) @ 1600 rpm
Oil capacity with filter: 8.3 qt (7.9 L)
Fuel capacity: 25 gal (94.6 L)
Fuel type: Diesel
Max fuel consumption: 3 gph (11.4 L/hr)
Cooling medium: Liquid
Coolant capacity (engine & radiator): 18 qt (17 L)
Electrical system: 12 V
Battery: 950 CCA
Alternator: Delco Remy 45 A

Chassis

Frame description: Formed steel
Tongue swing arc: 35º
Tongue transport lock: Mechanical
Jack capacity: 5000 lb (2268 kg)
Left suspension: Rigid mounted spindle
Right suspension: Tandem walking beam with spindle at front and rear
Left wheel and tire: 15' x 10' (38.1 cm x 25.4 cm) 8-bolt 12.5 L X 15-8 ply bar tread
Right wheel and tire: 15' x 10' (38.1 cm x 25.4 cm) 8-bolt 12.5 L X 15-8 ply rib tread

Hydraulic System

Tank capacity: 48 gal (181.7 L)
Oil type: HyPower 68
Filtration: Return filter Beta 6
Cooler: 1 Josephson
Fins per inch: 9
Pump type: Sauer gear pump
GPM (implement system): 4.6 gpm (17.4 L/min)
System pressure: 2400 psi (165.5 bar)
Pump type: Sauer 90 Series Hydrostatic
GPM: 28 gpm (106 L/min)
Max engine hp requirement: 46 hp (34.3 kW)

Drive System

Drive chain: 108 Pitch Jeffries chain
Drive sprocket: Martin 29T
Idler roller: (2) 12' (30.5 cm) diameter steel (2)
Rubber idler roller: (4) 10' (25.4 cm) diameter rubber coated
Bearing type: Pillow block
Bearing dynamic capacity: 9030 lb (4095.9 kg)
Head shaft dimension: Solid 2.25' (5.7 cm) diameter x 54' (137.2 cm) long

Elevating Face

Width: 6' (1.8 m)
Height: 7' (2.1 m)
Teeth type: 2, bolt hard-end cup-style
Number of teeth: 216
Paddles: 27 welded
Lift capabilities: 0 – 10' (0 – 25.4 cm)
Transmission type: Hydrostatic

Controls

Switches: Ignition
Gauges: Fuel, oil pressure, temperature, voltage
Tethered remote: LED display, throttle, face (start / stop / reverse), E-stop, tongue pivot, face (raise / lower)
Tethered cable: 15' (4.6 m)
Discharge system: 3 adjustable vanes

Tow Vehicle Requirements

Type: Tractor or wheel loader
Min tow vehicle weight: 5350 lb (2426.7 kg)
Hitch type: Clevis with pin
Creep speed control: 25 fpm (7.6 m/min)

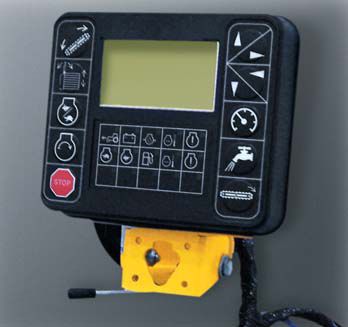

Tethered Remote. A tethered remote control with LCD screen provides full control of the compost turner from the convenience of the tow vehicle. Once the engine is started, the operator can control the face raise / lower, engine start / stop, tongue swing, forward / reverse / stop of face, and engine rpm functions. The LCD monitor provides real-time information on engine rpm, coolant temp and oil pressure.
