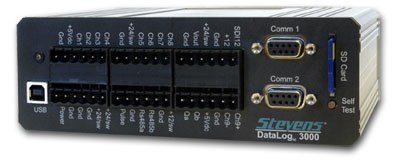

DataLogic - 3000 - Data Collection Platform

The Stevens DataLogic 3000 is a powerful, flexible, versatile and scalable data logger that will meet your data acquisition, processing, control and communication requirements. The DL 3000 provides several popular data bus I/O’s including, SDI-12 (Version 1.3), ModBus (optional), CAN Bus (ISO standard 11898), Four (4) RS-232 ports, RS-485, and USB 2.0. A host of analog inputs are offered as well for temperature, 4-20mA and more. Other digital features include an SD card interface that stores over eight gigabytes of sampled data. The DL 3000 is designed to be the hub for future expansion hardware including, a graphics LCD display, enhanced digital and analog outputs for user control of sensors and actuators, Bluetooth and ZigBee wireless communications, Internet connectivity, unlimited data processing and management through richly evolving Web Services and an optional camera attachment with video surveillance options, allowing photographs or video of an event to be taken and stored.

DataLogic 3000 Features

DataLogic 3000 Features


Features:*

  • Powerful 32-bit processor
  • Inputs:
    Analog
    Pulse
    RS-232
    RS-485 (optional)
    CAN Bus (optional)
    USB
    Quadrature
    SDI-12
  • Outputs:
    RS232/422/485
    USB 2.0 (compatible with USB 1.0)
    Modbus (optional)
    CAN Bus (optional) ISO standard 11898
    Switch voltage excitations
  • Simple configuration for telemetry applications:
    Satellite
    Radio
    Telephone
    Ethernet Links
  • High-speed USB 2.0 port (compatible with USB 1.0 devices)
  • SD memory card slot
  • 2 gigabytes of internal FLASH memory
  • Windows software for easy:
    Configuration and diagnostics
    Rapid data exchange to PC
    Graphical analysis
    Tabular analysis
    Data export to other software programs
  • Optional programming using generic terminal program and/or display module
  • Internet accessible via Web browser (optional)

*For a full listing of all of the advanced features of the DL 3000, please download the spec datasheet.


Stevens Water Monitoring Systems, Inc.
Stevens Water Monitoring Systems, Inc.
12067 NE Glenn Widing Drive, Suite 106
Portland,  OR 97220
