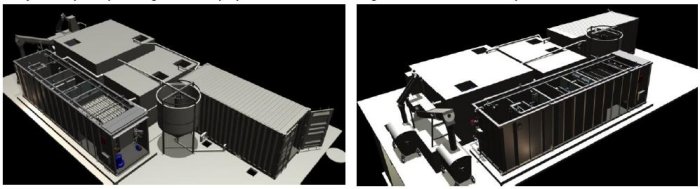

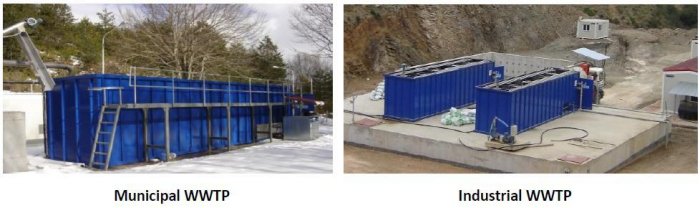

A complete Wastewater Treatment Installation using “DEVISE Packaged Solutions” comprises of a compact Pre-Treatment Unit, a Package Biological Treatment Plant and a Containerised Sludge Dewatering System with an optional Tertiary Treatment Stage.

The Pre-Treatment Packaged Plant is suitable for municipal wastewater and incorporates in a single “compact” system all major primary treatment steps, such as:

1. Fine screening and compacting of the solids.
2. Grit and sand sedimentation inclusive the removal, dewatering and discharge into a commercial waste bin.
3. Grease, Oil-fat collection - flotation, skimming and removal to a suitable discharge point.

The pre-treatment plant requires NO tanks and NO extensive civil construction while it occupies significantly less space than conventional methods. It is also fully enclosed eliminating odours and sprays and fully automatic for unattended operation. For Industrial Wastewater other systems such as chemical-physical separation maybe used (Gravity & DAF Separators).

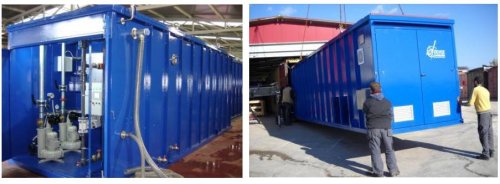

The Packaged “Bio-Plant” offers extensive biological treatment with the following advantages and savings:

1. Prefabricated system, fully tested ready to “plug and play”
2. Less plan area (up to 5 times less area).
3. Fully independent treatment lines with separate equipment and controls.
4. Virtually NO civil constructions.
5. Faster installation.
6. MBBR - IFAS process offers, effective, efficient and reliable treatment.
7. Can be moved to different site if necessary.
8. Modular arrangement. The installation can increase its capacity easily by adding more modules (packaged plants) operated in parallel.
9. Include excess-waste sludge discharge pump then you can pump directly to any sludge dewatering facility.
10. Treated effluent quality achieves EU 91/271. Tertiary (polishing) treatment can be easily added using gravity or pressure filters.
11. The “UltraClear” series Bio-Plant offers extremely clean effluent suitable for re-use.
12. All equipment is placed inside an enclosed and manageable machine room incorporated in each package, and offering „state of the art' PLC control with touch screen panel and mimic diagram.

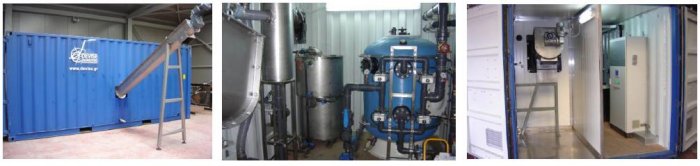

The Containerised Sludge Dewatering Plant (CSDP) offers the following advantages and savings:

• Easy on-site waste-sludge management
• Complete sludge dewatering plant inside a modified container
• Portable solution
• Automatic operation
• Fully enclosed facility with a wide range of capacities
• Odour Control system available for absolutely no environmental impact.
• It can accommodate sludge neutralisation with lime slurry

The following specifications and services are offered as standard to all our products:

1. Proprietary equipment is all from first class ISO 9001 Certified manufacturers and requires no special tools or maintenance.
2. High quality engineering and fabrication using 1st class materials.
3. DEVISE ENGINEERING S.A. is certified by TUV Rheiland and follows ISO 9001:2008 Quality Assurance Management system for the design and manufacturing procedures.
4. All our systems are simple to operate with low maintenance costs.
5. All systems are tested in-house before dispatch.
6. Installation is easy and plant commissioning with staff training can be provided on-site if required.
