Dragflow - HY 24 - Capacity 30-80m3/h - Power 10-19kW - Hydraulic Submersible Agitator Pump

Characteristics: Pump provided of agitator to stir things up, high abrasion resistance, low rotation speed, able to handle up to 70% per weight material density. Pump HY24 can be easily installed and driven by a mini-excavator. No cables, no electric supply! Plug you pump and work!

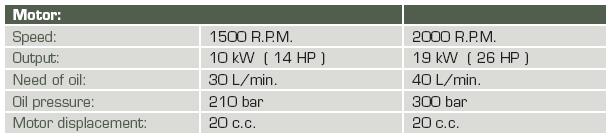

Technical Specifications


Materials

Main Body: spheroidal cast iron GS500.
Motor Housing: cast iron G25.
Wearing parts: high chrom.
Main Shaft: austempering NiCrMo4 Steel.

Seals

Motor Zone: double mechanical seal silicon carbide - silicon carbide in oil bath.
Impeller Zone: (alternate) no.2 compact polyurethane seals plus no.2 double rubber lip seals with stainless steel spring.

Applications

Civil Emergencies

  • Clean out underground rooms and tunnes
  • First intervention in environmental disasters (flooding)
  • Dredging sludge and mud deposits
  • Environmental dredging
  • Contaminated sediments dredging
  • Polluted sediments dredging

Construction Industry

  • Trench clean and back-fill in pipe/cable laying project
  • Pumping bentonite slurry during foundation
  • Clean out caissons in construction
  • Overburder remuval
  • Silt from gravel washing
  • Pumping sand and gravel
  • Environmental dredging
  • Off-Shore dredging


Foundry and Steel Industry

  • Mill scale pits
  • Coke plant scale pit
  • Blast furnace slag pit
  • Water treatment sump
  • Clean up sumps
  • Steel industry

Harbors and Maritime Works

  • Removal of silt/sand in marinas
  • Cleaning and maintenance of harbors
  • Reclaiming beaches
  • River, channel, lake dredging
  • Dam maintenance
  • Contaminated sediments removal
  • Harbor dredging
  • Off-shore and high depth dredging

Mining Industry

  • Mine tailings dredging
  • Gold tailing reclamation
  • Iron ore tailing reclamation
  • Ball mill sumps
  • Settling and collection ponds dredging
  • Underdround slimes collection ponds
  • Conveyor tunnel sumps
  • Coal tailing reclamation
  • Open pit slimes removal
  • Crusher sumps
  • Grinding area sumps
  • Flotation area
  • Track wash sumps
  • Removal of material from thickener
  • Oil Sands tailings managements
  • Environmental dredging

Oil and Coke Industry

  • Coke conveyor spillage sumps
  • Crude oil tank clean out
  • Sludge transfer
  • Settling/Collection pits
  • Tailings dredging
  • Pumping bitumen
  • Drilling mud barge unloading
  • Off-shore platform
  • Oil Sand tailings management

Transfer Sand and Gravel

  • Deep sea dredging operation (up to 150 m deep)
  • High depth dredging
  • Sand extraction
  • Ocean sand mining
  • Pumping sand and gravel (up to 120mm)
  • Environmental dredging
  • Contaminated sediments dredging
