• high thermal efficiency
• ultimate stability and a long, continuous lifecycle
• designed in accordance with the highest hygienic standards
• several versions to fullfil the requirements of different applications

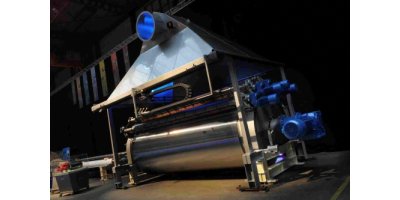

The drum body of the drum dryer is heated on the inside by steam. A special composition of cast iron gives the drum a combination of favourable properties: very accurate shape retention even at high steam pressure and temperature, and excellent 'scraping properties' for the scraping knife.

Steam heating gives a uniform temperature distribution over the drum surface and this results in a consistent product quality. The steam condenses on the inside of the drying drum. The condensate is continuously removed from the drum, so that the largest possible surface area remains available on the inside of the drum for condensation of the steam. The steam system is a closed system, which means that the product cannot come into contact with the steam or condensate.

Depending on the design of the drum dryer, the product is applied continuously as a thin film on the underside or top of the main drum. As the drum rotates and is heated on the inside, the product dries on the outside of the drum surface. The short exposure to a high temperature reduces the risk of damage to the product. The water or solvent evaporates and leaves the process at the top. If necessary, the vapour can also be sucked off locally around the drum. The dried product film finally reaches the knife and is scraped off.

In a double drum dryer the product is fed into the sump between the two main drums (which always rotate in opposite directions). The small gap between the drums can be set accurately to obtain a desired film layer.

For the easy, hygienic drying of everything from baby / infant food to toxic chemicals, Royal GMF-Gouda is with you every step of the process. Product treatment before and after drying receives our equal attention. From kitchen preparation through to mill sifting and pneumatic transport, Royal GMF-Gouda offers you practical solutions as well as access to a wealth of informed research.

Our technology is developing further and further: our third generation of drum dryers has been realized.

• A 100% closed system, also for vacuum operation;
• A system with minimum energy consumption and dust emission (a complicated filter system is unnecessary);
• Machines that are designed in accordance with the highest hygienic standards, thereby giving a guarantee of optimal hygienic during the complete production process. Royal GMF-Gouda's engineering and process departments are familiar with HACCP and EHEDG. Our quality insurance consists of certification by ASME, TÜV, European PED CE and other local certificates no matter where in the world.

The well-thought-out construction of the knife holder guarantees an even pressure over the total length of the drum. The use of specific materials prevents vibrations as a result of scraping and guarantees uniform product removal. The pressure of the knife can be controlled simply and this is done outside the process area.

In the design, a clear distinction is made between the process section of the dryer and the mechanical parts. This, for instance, prevents the risk of contamination by lubricants (or contamination of the lubricants due to leakage of the product). It also improves the accessibility of parts for adjustment, inspection and maintenance.

Starch, gelatin, potato flakes, cereal based baby foods, sodium benzoate, polymers, detergents, milk, yeast, pigments, sea salt, etcetera.
