The Dual-Shear™ M55 two shaft shredder utilizes a high-torque, low-speed design to efficiently deliver multipurpose shredding with greater reliability and lower maintenance requirements than other technologies. M55 two shaft shredders are available in both electric and hydraulic versions to meet your specific processing requirements. The Dual-Shear™ shredder outputs “strips” that are the width of the cutters. SSI’s robust design includes direct drive, “floating” cleaning fingers, patented ACLS™, and autoreversing on material overload that enables processing of the most difficult materials without damage to the shredding unit.

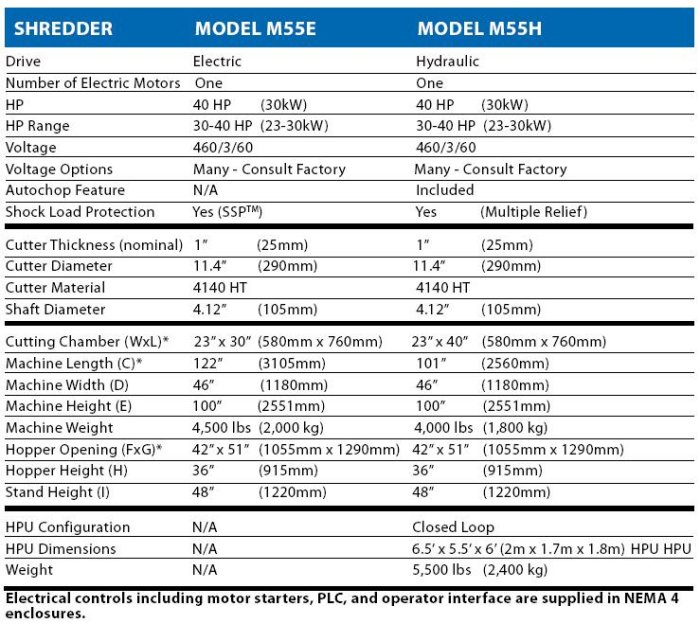

Horsepower range: 30-40 HP (23-30 kW). Cutting Chamber: 23' x 40' (580 mm x 1,025 mm). Hopper Opening: 42' x 51' (1,055 mm x 1,290 mm).
| Dual-Shear Two Shaft Shredder Brochure | |
| M55 Dual-Shear Two-Shaft Shredder Brochure |
Suitable Shredding Applications
- Mixed waste
- Wood
- Plastics
- Medical Waste
- Paper/Cardboard
- Document destruction
- Pharmaceuticals
- Product destruction
- Organic waste
- Glass
- Light electronic scrap
- Light gauge metals
- Fibers/Textiles
- and more...
Electric Or Hydraulic
M55 shredders are available in both electric and hydraulic versions to meet your specific processing requirements. Factors to consider include:
Hydraulic drive when processing:
- Mixed or unsorted materials.
- Batch fed materials.
- Materials containing non-shreddables.
- Materials requiring enhanced
- particle size or throughput control.
Electric drive when processing:
- Sorted, uniform materials.
- Conveyor fed or metered materials.
- Materials containing limited non-shreddables.
SSI Advantages
High-torque, low-speed design
Delivers multipurpose shredding with greater on-line reliability and lower maintenance requirements than other technologies.
Direct drive motor
Provides improved efficiency and reliability. Alternate speed and torque combinations available.
Auto reversal feature
Protects against overfeeding and damage by non-shreddables.
Patented ACLS - Advanced Cutter Locking System
Eliminates daily requirement to tighten cutter stack while improving shredder performance and cutter life.
Shock load protection feature
Protects shredder and drive components. Electric version offers patented SSP - Severe Shock Protection™ controlled torque coupling. Hydraulic version utilizes multiple relief valves.
Proprietary bearing protection
Isolates bearings from cutting chamber contamination and protects against bearing failure.
Convertible drive
Versatile design accommodates electric or hydraulic drive. Optional conversion package available.
|
