UV Plants of thin layer construction type with high-flux radiators

Applications:

• disinfection of cloudified or coloured process and effluent water

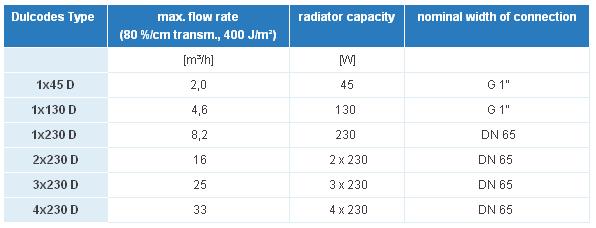

• Flow rate: up to 33 m³/h (depending on the type of transmission)

• Secure disinfection by monitoring via long-time-stable UVC probe
• Low maintenance work due to few but powerful radiators in amalgam technology with high lifetime
• Constant capacity also with instable temperature conditions thanks to special radiators
• Economy of spare radiators thanks to sparing ignition and exact adjustment of the optimal radiator operational current
• Easy cleaning, thanks to complete cleaning system as accessory
• Spacial separation of control gear from control drive over long distances no longer a problem thanks to BUS technology
• Easy and individual adaptation to operational conditions and circumstances by freely programmable control drive.

• Flow rate: up to 33 m³/h (depending on the type of transmission)
• Standard chambers of one or more radiation chambers arranged in a row with lengthwise flow and one radiator each.
• High-duty low pressure radiators high-flux with special amalgam technology, higher UV capacity, largely temperature-independent.
• Radiator lifetime: 8 000-10 000 h
• Control gear with BUS interface for ignition and monitoring of every single radiator
• Variable radiator current for sparing ignition and exact adjustment of optimal radiator operational current.
• Long-time stable UVC probe for monitoring the disinfection capacity and the transmission (UV permeability) of the water
• Big graphic display for viewing the probe signal
• Monitoring of the radiator weathering, the radiator protection tube contamination as well as changes in the water quality
• Freely programmable control drive for e.g. various rinsing, alarming and shutdown events
• Radiation chambers of high-quality stainless steel 1.4404
• Control cabinets of varnished steel
• Complete cleaning system as accessory consisting of acid tank, circulating pump, valves and hoses for quick chemical cleaning of radiator protection tube and radiation chamber
