UV plants of plastics with high-flux radiators
Applications: Radiation of salt water Flow rate: up to 170 m³/h (depending on the type of transmission)

• applicable in saline waters as no risk of corrosion
• safe disinfection with monitoring through long-time stable salt water resistant UVC probe.
• low maintenace work as few but powerful radiators in amalgam technology with long lifetime.
• constant efficiency even with fluctuating temperatures thanks to special radiators.
• Economy of spare radiators thanks to sparing ignition and exact adjustment of the optimal radiator operational current.
• Special separation of control gear from control drive over long distances no longer a problem thanks to BUS technology.
• Easy and individual adaptation to operation conditions and circumstances by freely programmable control drive.

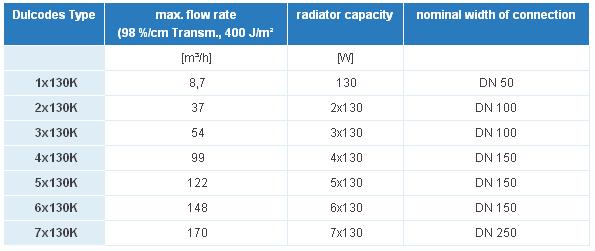

• Flow rate: up to 170 m³/h (depending on the type of transmission)
• High-duty low pressure radiators high-flux with special amalgam technology, higher UV capacity, largely temperature-independent.
• Radiator lifetime: 8 000 - 10 000 h
• Control gear with BUS interface for ignition and monitoring of every single radiator
• Variable radiator current for sparing ignition and exact adjustment of optimal radiator operational current.
• Long-time stable UVC probe for monitoring the disinfection capacity and the transmission (UV permeability) of the water.
• Big graphic display for viewing the probe signal.
• Monitoring of the radiator weathering, the radiator protection tube contamination as well as changes in the water quality.
• Freely programmable control drive for e.g. various rinsing, alarming and shutdown events.
• Radiation chambers of UV stabilized PE-HD.
• Control cabinets  of varnished steel.
