UV system Dulcodes R with high-performance Opti-Flux lamps and manual wiper.

Applications: disinfecting drinking water and process water, as well as photochemical reduction of chloramines in swimming pool water.

• Cleaning with no interruption to operation:
• the manual wiper is easy to operate even under full system operating pressure. Selfsharpening
• wiper elements achieve highly effective cleaning over a long service life
• More output with fewer lamps: 300 W lamp power allows more flow per lamp
• Longer maintenance cycles, lower running costs: the 14,000 hours lamp life sets new standards
• Diverse special functions, simple connection to central control rooms: system controllers with electronic ballasts and individual lamp monitoring

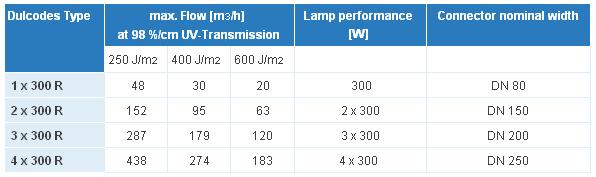

• Flow: up to 438 m3/h (depending on transmission and radiation dose)
• Auto-adjusting wiper elements made from food-safe PTFE
• High-performance Opti-Flux low-pressure lamp using special amalgam technology, increased UV output, very largely independent of temperature
• Lamp service life: up to 14,000 h
• Freely-programmable controller, e.g. for different flushing, warning and shutdown procedures
• UV-C sensitive UV sensor, large graphical display showing the sensor signals and operating messages in plain text

Main applications

• Disinfection of drinking water
• Disinfection of process water
• Photochemical reduction of chloramines in swimming pool water
