• safe disinfection thanks to monitoring via long-time stable UVC probe
• low maintenance work as few but powerful radiators in amalgam technology with long lifetime.
• constante efficiency even with fluctuating temperatures thanks to special radiators
• Applicable also for hot water disinfection tasks
• economy of spare radiators thanks to sparing ignition and exact adjustment of the optimal radiator operational current.
• spacial separation of control gear from control drive over long distances no longer a problem thanks to BUS technology.
• easy and individual adaptation to operation conditions and circumstances by freely programmable control drive.

a

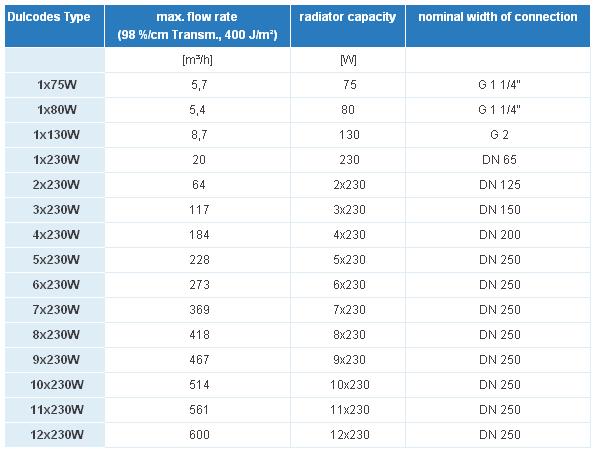

• flow rate: up to 600 m³/h (depending on the type of transmission)
• high-duty low pressure radiators high-flux with special amalgam technology, higher UV capacity, largely temperature-independent.
• radiator lifteime: 8 000-10 000 h
• control gears with BUS interface for the ignition and monitoring of every single radiator
• variable radiator current for sparing ignition and exact adjustment of optimal radiator operational current.
• long-time stable UVC probe for monitoring the disinfection capacity and the transmission (UV permeability) of the water.
• big graphic display for viewing the probe signal
• monitoring of the radiator weathering, the radiator protection tube contamination as well as changes in the water quality.
• Freely programmable control drive for e.g. various rinsing, alarming and shutdown events.
• Radiation chambers of high-qualit y stainless steel 1.4404
• Control cabinets of varnished steel.
