DULCODOS - Panel-Mounted Dosing Systems
(0 votes)

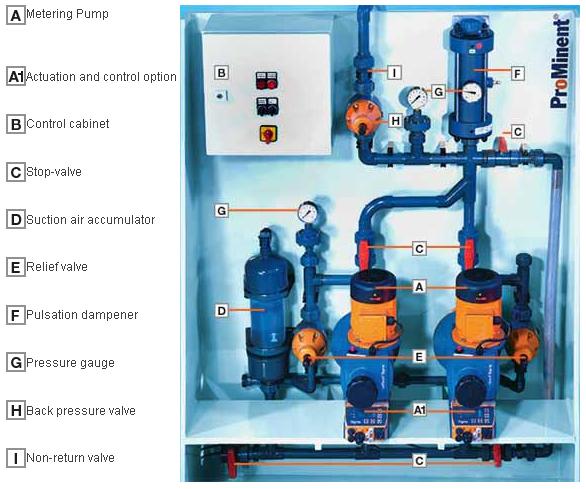

The panel-mounted dosing systems DULCODOS panel consist of standard versions that can be enlarged by popular options such as reduced-pulsation dosing and suction aid with the capability of gauging the capacity by litres. The standard versions are equipped in a way to ensure safe operation. The metering pump is installed as plug & play version on a basic plate with integrated drip pan. An overflow valve protects the piping from inadmissibly high fuel-line pressures. Two rinsing connections allow rinsing of the pump after its metering task.
Advantages
- Compact design
- Fast project planning
- Flexibility thanks to modular construction principle
- Thousandfold proven
Application Areas
- Metering of biocides and inhibitor in cooling water
- Metering acids and brines for pH value regulation
- Metering of precipitants (Iron-III-Chloride) for effluent water treatment
- Metering of cleaning agents (CIP plants, bottle-rinsing machines)
|
Versions
The following standard versions are available:
- Version 1: Metering system with one metering pump
- Version 2: Metering system with one metering pump and one stand-by-pump
Each standard version can be supplied with the following options:
- Reduced-pulsation dosing
- Suction aid with the capability of gauging the capacity by litres
- Pipework material
- Seals material
- Terminal box
- Leakage probe
- Suction and delivery connections
