• Controlling of one to 16 circuits
• Possible measured variables per circuit: pH, ORP/Redox, temperature, chlorine (free and total available chlorine), bromine, fluoride, ammonia, chlorine dioxide, chlorite, conductivity, UV intensity, flow and turbidity
• Simple wiring and flexible later expandability thanks to CAN bus system
• Flexibility thanks to expansion with Plug & Play bus modules for measuring, controlling, and actuating
• Big price advantage because of easy assembly and decentralised concept
• Plug & Play: automatic sensor and metering pump detection
• Easy on-site calibration
• Integrated screen recorder with data logger as standard
• 5.7', 1/4 VGA colour display for easy operation
• Optional: Basis visualisation: Easy with embedded Web server and standard Web browser
• Optional: Connection to SCADA or building visualisation systems via OPC Server (via LAN interface) easy direct connection to PC, PC network or via Internet

Application focuses

• Drinking water treatment
• Disinfection
• Water treatment

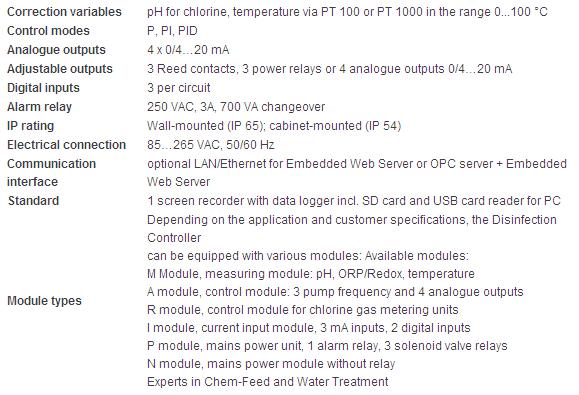

Technical Data
