The DULCOMARIN II can be configured in two ways:

• DULCOMARIN II compact: For controlling a single swimming pool
• DULCOMARIN II DULCO -Net: For controlling up to 16 filtration cycles.

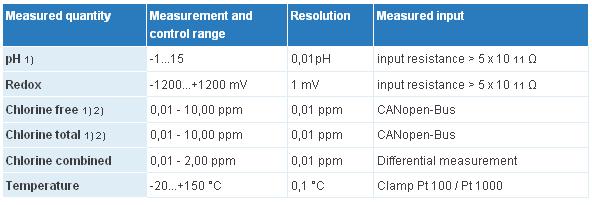

ProMinent made the idea a reality, achieving the task of measuring and controlling from one up to 16 filtration cycles using a single device. Even from two cycles considerable cost advantages are gained in comparison with traditional measuring and control systems, because only one single central unit is needed. Each filtration cycle has an in situ calibration option and can measure and control the following parameters:

• pH value
• free chlorine
• total chlorine (only measured)
• combined chlorine (calculated)
• ORP
• Temperature (as correction variable for pH and chlorine)

• Considerable cost savings through integrated videographic recorder as standard and distributed modular design:
• With only one central unit, up to 16 filtration cycles can be regulated and controlled.
• The simplest operation because of the large illuminated colour display and automatic selection of measurement
• range. Simple wiring by means of coded ready-made socket connections.
• High degree of reliability thanks to extensive monitoring functions such as sensor monitoring and dosage time limitation.
• Visualization without special software using a normal PC and optional integrated webserver.

• Simple installation: installation only needs one bus cable
• No wiring errors because of coded plugs and sockets
• Each ProMinent device connected is automatically recognised by the central unit and works according to the “plug and play” principle making installation and start up much easier.
• Investment for the future: flexible and simple upgrade with additional modules
• Up to 16 filtration cycles controlled by only one central unit saving costs
• Integrated videographic recorder (optional) saving costs on a printer, ink and paper
• Built-in visualization – An embedded webserver as standard allows you to communicate with the DULCOMARIN® II without any special software and only one PC with a LAN interface and a web browser.
• The card reader: The built-in SD-card reader allows you to transfer measured data to a PC or to carry out software updates using a SD-card familiar to you from using a digital camera
• Intuitive operation using a large colour display
• Minimizing combined chlorine: depending on the concentration of the combined chlorine, ProMinent UV and ozone plants can be used to breakdown chloramines.

• temperature compensated
• pH compensated

ProMinent DULCOMETER Measuring and Control system uses DULCOTEST sensors and ProMinent dosing pumps for building a complete control system providing measurement, control, dosage and recording, all from one source, optimised to work together.
