DULCOMETER - D1C - Single Channel Controller

0.511.522.533.544.55 (0 votes)
DULCOMETER - D1C - Single Channel Controller

Single channel controller with control characteristics P and PID, measuring variables pH, Redox, Chlorine, Bromine, Chlorine Dioxide, Chlorite, Ozone, inductive and conductive conductivity, Fluoride, H2o2, Peracetic Acid, Temperature and Standard Signal. The single channel controller DULCOMETER D1C is a measuring and control device based on microprocessor technology that grants highest process safety with a comprehensive application spectrum. The controller is configurable and can thus individually be adjusted to your requirements. This is not only valid for its type of control but also for its construction type (wall mounting or panel mounting) and many more parameters. You select what you need for your regulation task and only pay for that.

Advantages

Advantages


  • Universally implementable, as many measuring values controllable: beside pH, Redox, conductivity and Chlorine, also Dissolved Oxygen, Fluoride, Bromine, Chlorine Dioxide, Chlorite, Ozone, Hydrogen Peroxyde and Peracetic Acid.
  • Ideal adjustment to process requirements thanks to various stages of extension
  • Seamless integration into your process technology: variable installation possibilities for the sensors and large number of control possibilities for metering devices.
  • Optimized process flows through special functions such as disturbance feedforward, pH compensation for Chlorine, base load dosing and many limit value functions.
  • Safety: limit value monitoring with standardized dosing time restrictions.
  • Easy and clear user guidance with text indicator on big graphic display in 16 languages.
  • Large, easily readable graphic display for measuring values, correction values and information.

Features

Features


  • Limit value control with standardized control variable shutoff
  • Disturbance insensitive probe connection in dual wire technology
  • 2 signal outputs 0/4 - 20 mA galvanically separated
  • Various construction types for wall and panel mounting
  • 1 digital input for 'break' and 'error' measuring water
  • Disturbance signal processing as digital or analogue signal
  • 2 timers as cleaning contact or for shock dosing
  • Additive basic load dosing
  • Bidirectional control
  • Neutral zone control
  • Temperature compensation for pH, conductivity and Chlorine Dioxide process measuring
  • pH correction for Chlorine
  • Adjustable access code

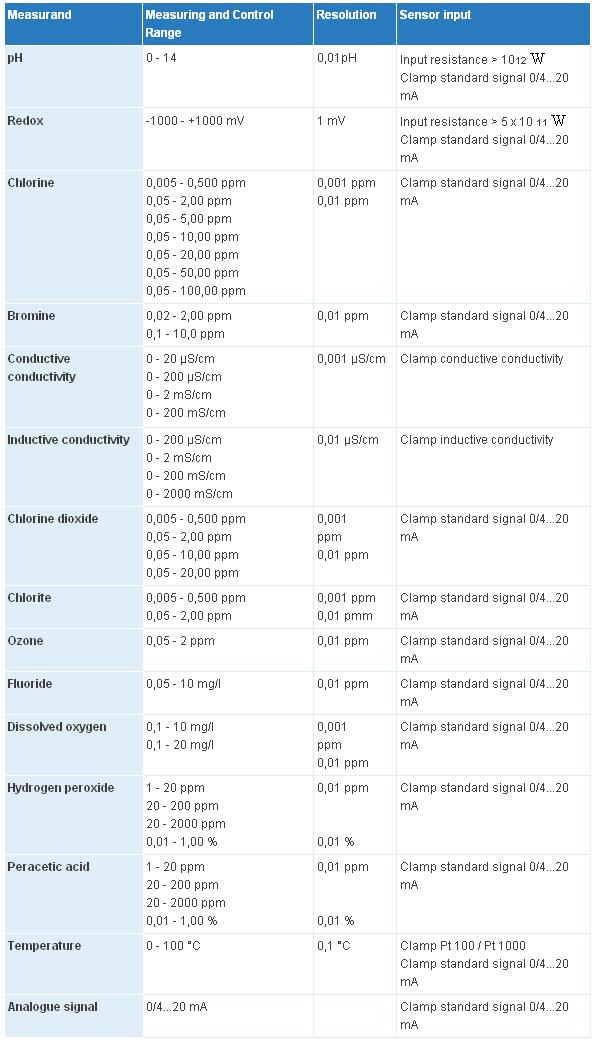

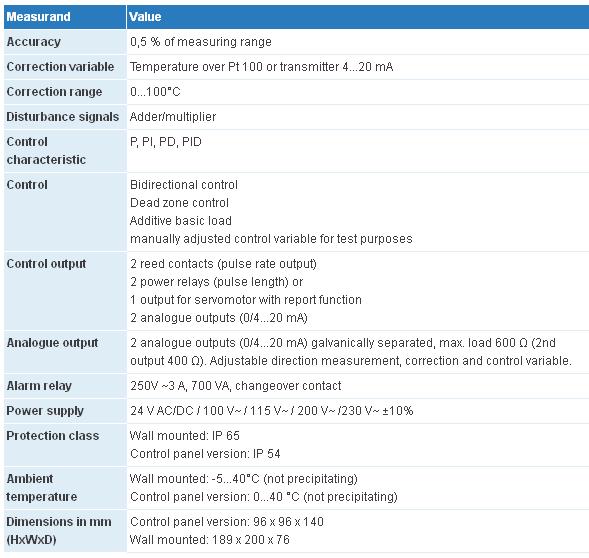

Technical Data

Technical Data





ProMinent Dosiertechnik GmbH
ProMinent Dosiertechnik GmbH
Im Schuhmachergewann 5-11
Heidelberg, Baden-Württemberg; 69123
