DULCOMETER - DMT - 2-Wire-Transmitters

• Universally implementable as many measuring values controllable: pH, Redox, conductivity, Chlorine, temperature
• Ideal adjustment to process requirements thanks to various stages of extension
• Seamless integration into your process technology: variable installation possibilities for the sensors
• Easy and clear user guidance with text indicator on big graphic display in 5 languages
• Big, easily readable graphic display for measuring values, correction values and information
• High operation safety: probe monitoring (pH) and electrical isolation
• Simple flexible installation
• Automatic buffer recognition (pH)
• Autoranging (conductivity, no measurement range shift)
• Compact design
• Switch between pH, Redox and temperature
• Automatic recognition of platinum thermometre (Pt 100/Pt 1000)
• Measuring value simulation mode for test purposes
• Bus interface (PROFIBUS-DP)

• Process control in chemical and pharmaceutical industries
• Water treatment
• Effluent water treatment
• Power stations

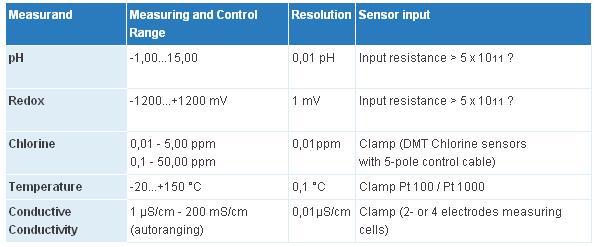

• Measuring variables: pH, Redox, conductivity, Chlorine, temperature
• High measuring safety thanks to symmetric input for pH and Redox
• Residual current: 23 mA
• Display of sensor impedance for pH and Redox
• Mounting to pillars, pipes, wall and panel mounting
• Communication interface PROFIBUS-DP

ProMinent offers DULCOMETER measurement and control devices, DULCOTEST sensor technology as well as ProMinent metering pumps for the creation of complete control circuits. Measuring, Control, Dosing and Recording, all from one hand and optimally inter-adjusted.
