Duoline & Miniline Vessels

0.511.522.533.544.55 (0 votes)

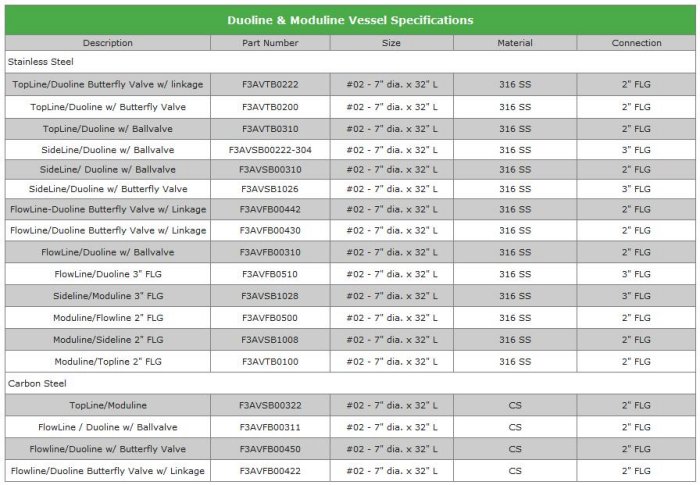

Duoline & Miniline Vessels

Duoline filter housings are for applications where the system flow cannot be shut down for filter bag change out.  Either a butterfly or ball valve assembly is used to divert the flow between the two housings so that the isolated, out of service, housing can be serviced.  The flow is never shut down. Moduline filter housings are for applications where the flow rate is too high for a single bag filter housing.

Features

Features


  • Sizes for #02 double length filter bags
  • Cover positively seals filter bag
  • 2' or 3' RF 150 lb ANSI flanged connections
  • Max operating pressure of 150 psi
  • Max operating temp of 400 F
  • Stainless steel construction



Ecologix Environmental Systems, LLC
Ecologix Environmental Systems, LLC
11800 Wills Road Suite 100
ALPHARETTA,  Georgia 30009
