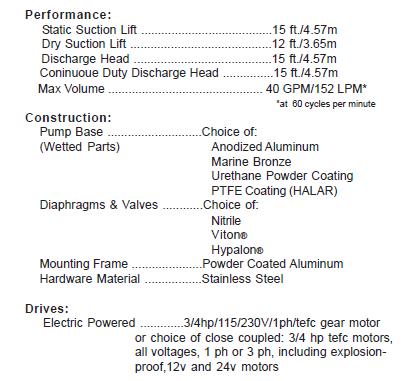

The Edson 3/4 HP electric powered, skid mounted, nominal 40 gallon per minute, 2” NPT, diaphragm pumps. The 120ELA is built with the wetted parts made of anodized aluminum and the 120ELB wetted parts are marine bronze. Order Nos. 120EWA-40-200 and 120EWB-40-200 are the cart mounted version with wheels and handle for portability. The standard models are supplied with a 55 rpm, single phase, 115/230 volt, 60 hz., tefc gear motor as standard drive. With this drive these pumps will operate at 56 cycles per minute and perform.
|Edson - Model 120E - Electric Powered Diaphragm Pump Brochure|
|Edson - Model 120E - Electric Powered Diaphragm Pump Manual|
The pumps can be ordered with optional motors and optional gear reducers that allow them to operate at variable speeds, or at 5 optional fixed speeds. The performance charts below detail the pumps performance at these optional fixed speeds and provide a representation of performance for the pump equipped with a variable speed motor.
The pumps can also be ordered with additional options that include three phase 208-230/440 volt motors, 12 or 24 volt dc motors and explosion proof motors. For pumping materials that require rubber with different chemical resistant properties Edson offers optional diaphragms and valves made of Viton.
Edson Electric Powered Diaphragm Pumps are the most popular of all Edson Pumps due to their size, capacity, versatility and the economy of electric drives. They are used for the collection and transfer of waste liquids and pumping liquids with suspended solids. They are capable of handling liquids with large suspended solids without clogging, to prime from dry starts, and to run dry. They have the added feature of low emulsive, non-sheering pumping action. These basic performance features & Edson’s 14 year history of manufacturing quality products have made our pumps the choice for cleaning up our environment and controlling the disposal of liquid waste. These pumps can be applied to a very broad range of applications including the requirements for ground water remediation, containment transfers, dewatering, oil & water separations, marina & campground sewage collection, tank, sump and drum transfers, filtration applications, and the collection & transfer of abrasives & slurries.
