- Model 120G - Gasoline Powered Diaphragm Pump

From
0.511.522.533.544.55 (0 votes)
Edson - Model 120G - Gasoline Powered Diaphragm Pump

Edson Gasoline Powered Diaphragm Pumps are designed for tough jobs and remote and mobile applications such as: dewatering excavation sites, municipal and utility vehicles, waste oil collection, oil spill clean-up, HAZMAT pumping, sewage collection, well monitoring, mill pond dewatering, farm waste pumping, and marine light dredging.

Order Nos.120GLA-200 and 120GLB-200 are the Edson gasoline engine powered, skid mounted, nominal 40 gallon per minute, 2”, NPT, diaphragm pumps. The 120GLA is built with the wetted parts made of anodized aluminum and the 120GLB wetted parts are marine bronze. Order Nos.120GWA- 200 and 120GWB-200 are the cart mounted version with wheels and handle for portability. The standard models are supplied with a 3.5 HP gasoline engine and a 57 to 1 ratio gear reducer as standard components. With this combination of motor and reducer these pumps will operate at 56 cycles per minute and perform as detailed in the 56 cycle performance below. The unique direct coupling of the gasoline engine to the gear reducer provides the option to power this pump with an electric motor at any time.

  • Safe to run when dry
  • Volumes to 38 gpm
  • Powerful vacuum lifts
  • Dry start lift to 12'
  • Pump up to 50% solids
  • Low emulsive & sheer action
  • Non-clogging flow-thru design
  • Easy to set-up, use, clean, and maintain
  • Permanent and portable applications
  • Built tough for years of service
  • Long life, reinforced pump diaphragms
  • All materials specified for the marine environment

Application/Industries Served

Edson Gasoline Powered Diaphragm Pumps are designed for tough jobs and remote and mobile applications such as: dewatering excavation sites, municipal and utility vehicles, waste oil collection, oil spill clean-up, HAZMAT pumping, sewage collection, well monitoring, mill pond dewatering, farm waste pumping, and marine light dredging. They are used for the collection and transfer of waste liquids and pumping liquids with suspended solids. They are capable of handling liquids with large suspended solids without clogging, to prime from dry starts, and to run dry. They have the added feature of low emulsive, non sheering pumping action. These basic performance features and Edson’s 140 year history of manufacturing quality products have made our pumps the choice for cleaning up our environment and controlling the disposal of liquid waste. Evident by the list below the pumps can be applied to a very broad range of applications including the requirements for dewatering, oil and water separations, marina and campground sewage collection, tank, sump and drum transfers and the collection and transfer of abrasives slurries.

Industrial

  • Sump Pump-Outs
  • Drum Transfer
  • Spill Cleanup
  • Drain Dewatering

Environmental

  • Tank Pump-Outs
  • Grease & Oil Collections
  • Skimming Pumping
  • Asbestos Clean-Ups
  • Oil Spill Clean-Up

Marine

  • Pump-Out Stations
  • Light Dredging
  • Emergency Dewatering
  • Boatyard Utility Pump
  • Oil Spill Cleanup

Municipal & Utility

  • Sewage Collection & Transfer
  • Waste Water Skimming
  • Drain Clean-Out
  • Utility Trunk Pump
  • Fly Ash Clean-Ups
  • Containment Transfer
  • Meter Pit Dewatering
  • Manhole Dewatering

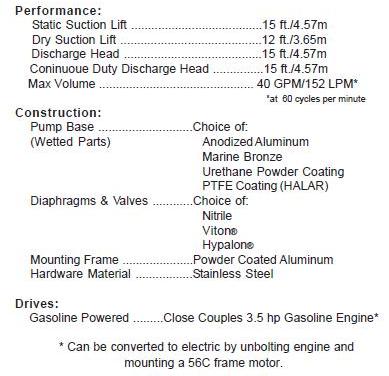

Specification

Edson International, Pumps Division
Edson International, Pumps Division
146 Duchaine Blvd.
New Bedford ,  MA 02745
