Integrated Bio-Reactor (IBR)

The Integrated Bio-Reactor (IBR) is well suited for treating wastewater in both industrial and municipal applications with a range of organic loading concentrations. The Integrated Bio-Reactor (IBR) was designed with minimal maintenance in mind: the only moving mechanical part are the blowers, which drive system aeration.

• Bolted, Carbon Steel EQ Tank
• Straight Wall/Cone Shaped Clarifier
• Diffuser Aeration System
• Aeration Blower
• Sludge Transfer Pump
• Adjustable Weir Launder
• Waste Activated Sludge (WAS) Transfer pump

• Low Installation/ Maintenance Costs
• Small Footprint

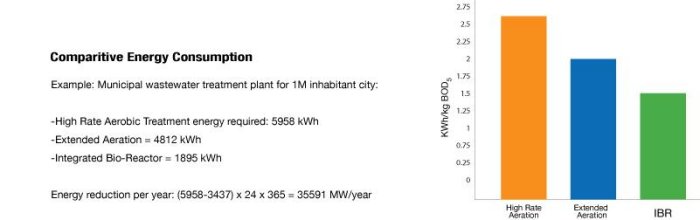

• Minimal Energy Consumption

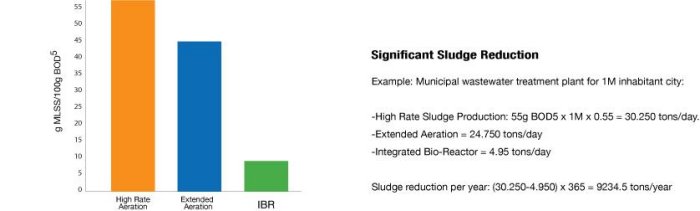

• Near Zero Excess Sludge
• Low and High Flow Applications

• Cone shaped clarifier for industrial applications
• Anoxic zone
• Integrated chemical feed systems
• Headworks
• Different materials of construction
• Jet aeration

The Integrated Bio-Reactor (IBR) is well adapted for the treatment of wastewater with highly concentrated organic loads such as industrial biodegradable effluents and less contaminated effluents, typically found in applications involving municipal wastewater treatment. The operation of the IBR is very simple and reliable due to the innovative design of our patented technology: the system's only moving mechanical part is the centrifugal pump, which drives the effluent through the ejector. No additional maintenance is required! From Municipal wastewater treatment to an impressive expanse of Industrial applications, this revolutionary technology demands less energy, produces less sludge and saves more money in both installation and maintenance costs than any other product like it.
