The patented geometry is very simple, yet L/H units are highly successful and applied world-wide to many in-line mixing problems in pipe sizes from 1' through 24'. The L/H unit is used to introduce a very small amount of a low viscosity additive into a much higher viscosity melt stream.
Overview
As the high viscosity material exits the two holes, natural hydraulic forces cause the material to occupy the entire pipe cross section. These forces are generated by downstream forming dies, static mixers, screen changers, etc. Each exiting stream is forced to form into a 'D' shape to fill the pipe. The additive entering between the two flows has no option but to form into a thin sheet across the pipe diameter.
It can be shown that if 'F' is the additive fraction where F = 0.01 for 1% then the A/t value for the L/H unit is 8/p 2F. In other words if F = 0.01 or 1%, then A/t = 81. This is clearly a big improvement over the value of p we get for a simple T inlet.
Viscosity and Pressure Drop Considerations

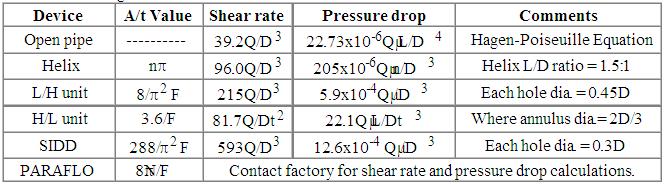

Most polymeric materials are shear sensitive. That is to say, their viscosity is dependent on the shear rate to which they are exposed. Usually an increased shear rate produces a lowering of viscosity and is referred to as shear thinning. Viscosity versus shear rate data is usually provided by the polymer manufacturer in the form of a graph on log/log paper. We list below the shear rate and pressure drop formula for each of the devices we have described and others together with the units involved.Main pipe inside diameter = D inches
- Main product flow rate = Q gpm
- Shear rate = g sec-1
- Viscosity = m cP
- Pressure drop = dP psi
- Axial length = L inches
- Additive fraction = F
- Number of mixing elements = n
