Legio Zon - Chlorine Dioxide Plants Legio

Chlorine dioxide is increasingly gaining acceptance, particularly in the control of Legionella and other bacteria in the potable water used in public buildings such as hospitals, hotels or sports complexes. With the new Legio Zon system, the requirements of smaller and mid-sized buildings can be reliably handled too. With Legio Zon, 0-5 g/h of chlorine dioxide are generated by the chlorite/acid process and dosed in proportion to volume.

Advantages

  • Outstanding Legionella protection with the proven chlorite/acid process for small and mid-sized buildings too.
  • High safety standard in accordance with DVGW (German Gas and Water Association) specification W 224 and no hazardous operating conditions, thanks to optimal
  • chlorine dioxide concentration (2 g/l)
  • High operational safety through automatic monitoring functions and service messages
  • Low investment costs, simple and low-cost maintenance
  • Simple operation

Features

  • 0-5 g/h chlorine dioxide generation in batch process mode
  • Equally suitable for continuous and intermittent operation
  • High stability of the generated chlorine dioxide solution lasting over several days
  • Safe automatic restart after mains failure
  • Controller with menu-guided operation, rinse and service functions
  • Integrated dosing pump for chlorine dioxide
  • Direct control by means of contact water meter or inductive flowmeter

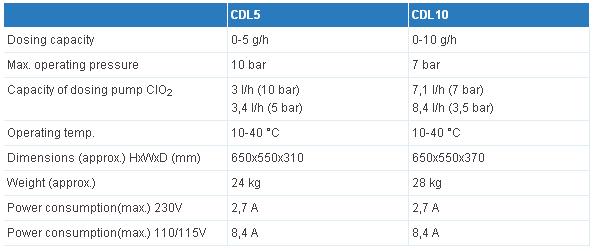

Technical Data


Inputs:

  • Water meter (contact or frequency)
  • External digital input (can be configured for pause, shock dosage, high dosage or manual)
  • External fault

Outputs:

  • Operating alarm relay
  • Warning relay
  • Fault alarm relay

APPLICATIONS

Optimal hygiene & Cleaning solutions for food & beverage industry - Food and Beverage

Optimal hygiene is a prerequisite in the drinks industry to ensure sustainably high quality and a long shelf life for the end product, regardless of whether the plant is producing beer, lemonade, mineral water / table water, fruit juices, wine or sparkling wine. The law demands design-specific optimised cleaning for all surfaces that come into contact with foods and beverages. This makes CIP-cleaning (cleaning in place) essential, in order to avoid dismantling a multitude of individual components. Three ProMaqua...
