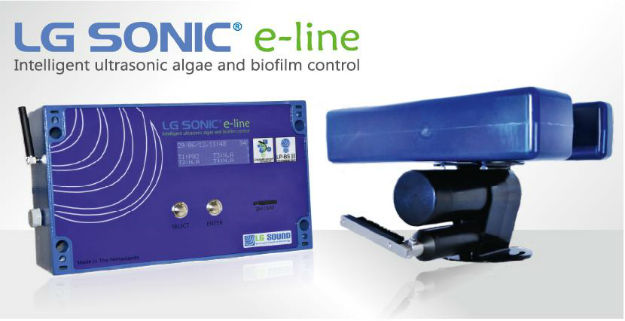

LG Sonic - e-Line - Intelligent Ultrasonic Algae and Biofilm Control

Low power – Bright Signal II technology

By redesigning our devices, we were able to integrate the electronics into the transmitter. This innovation offers the possibility to extend the transmitter cable indefinitely without sound loss and reduces the power consumption of the device even further.

By adjusting the electronic components, we have upgraded the Low Power- Bright Signal (Lp-Bs) TechnologyTM to obtain an even more efficient system, producing an outstanding sound quality signal. Thanks to the Lp-Bs2 system, the LG Sonic e-Line will have a longer life span and lower power consumption than the former LG Sonic products.

Multiple transmitters

The LG Sonic e-Line offers the possibility to install up to 4 transmitters on one single electronic control box. Every transmitter can be programmed via the same e-box and can work on separate programs depending on the water parameters and degree of treatment desired.

This option allows easier installation and treatment in situations where several reservoirs need to be treated or the water body has a bend or curve.

Automatic cleaning of the transmitter head with the integrated Wiper integrated Wiper

The LG Sonic e-Line is the first and only ultrasonic system world-wide that has an automatic cleaning system that wipes the transmitter head.

This ensures 100% effective treatment because calcite deposits and other fouling of the transducer head are prevented.

Furthermore, it is scientifically proven, that frequent cleaning of the transmitter results in a 50% stronger sound signal after 6 months.

By integrating an automatic wiper into the LG Sonic, optimal performance with minimal maintenance is ensured. Every 3 hours, the head of the transmitter is swept, which allows the ultrasound to be 100% effective providing an optimal algae control 24/7.

LCD Display Module with Pushbuttons

An LCD screen is included in every LG Sonic e-Line that displays the status of each LG Sonic transmitter. The LCD module includes 2 pushbuttons to select up to 10 different frequency programs for each of your transmitters.

Remote control and selection of the optimal frequency program

The GSM-2 Control unit allows you to monitor and change the ultrasonic program of your unit:

• Thanks to the Chameleon technologyTM, the LG Sonic e-Line has different frequency programs which can be changed by sending an SMS Message.
• Besides that, you can request the operation status of your device at any time or receive an SMS message from your device when any technical error occurs or the power has been off for 3 hours or more.

Solar system available

The LG Sonic units can also operate on 24 Volts DC using only 5 Watt. The complete standalone solar system and installation can be purchased from LG Sound.

Environmentally friendly

LG Sonic offers algae control without chemicals.
LG Sonic can operate on solar power.

Easy to install

The LG Sonic algae control devices are easy to install. After delivery the product can be installed immediately in a water reservoir Read more about installation .

The flexi-arm
The flexi-arm makes installing the LG Sonic units easy and fun!
This, especially for LG Sonic designed product, offers the possibility to aim the LG Sonic unit better and addresses the problem of installation in water reservoirs with a fluctuating water level.
The flexi-arm can be adjusted to fit every type of water body  where previously improvised techniques did not suffice.

Safe for fish

LG Sonic algae control is safe for Fish, plants, insects and humans.
The effect of LG Sonic on different organisms have been tested by various organizations and universities, amongst others:

• University of Portsmouth, Catania and BOKU found the LG Sonic units are safe for Fish.
• The USDA-ARS Catfish Genetics Research Unit found that LG Sonis is safe for use with Catfish

Dual Tester

A sound meter that is especially designed to measure the effective frequencies of LG Sonic to check its correct operation.
The Dual Tester can be used to test whether the electronic board is  producing all the correct frequencies by plugging it into the transducer output. Besides that, it can also be used to test the frequencies emitted into the water.

The Dual Tester has been set to match the correct frequencies that the LG Sonic is known for and do not measure any harmonic noise or useless frequencies, that a common dB meter would do.
