0 Makro - TZ - Plunger Metering Pump

(0 votes)

The motor-driven plunger metering pump Makro TZ because of its modular design is excellently suited to being adapted to the performance requirements of the particular application. A great variety of options are available for its operation, either one or two liquid ends and one or several add-on pumps which the customer can fit at a later stage.

DOWNLOADS

Dosing of Chemicals Brochure

» View All

Advantages

High processing quality: Reproducibility of dosage better than ±0.5 %
Broad field of application, easily adapted even by the customer because of its modular design

Contact Now/Request quote

Application Areas

Dosing of treatment agents in industrial production technology
Dosing of additives in the chemical and petrochemical industry, e.g. dosing of glycol in the delivery of natural gas

Contact Now/Request quote

Features

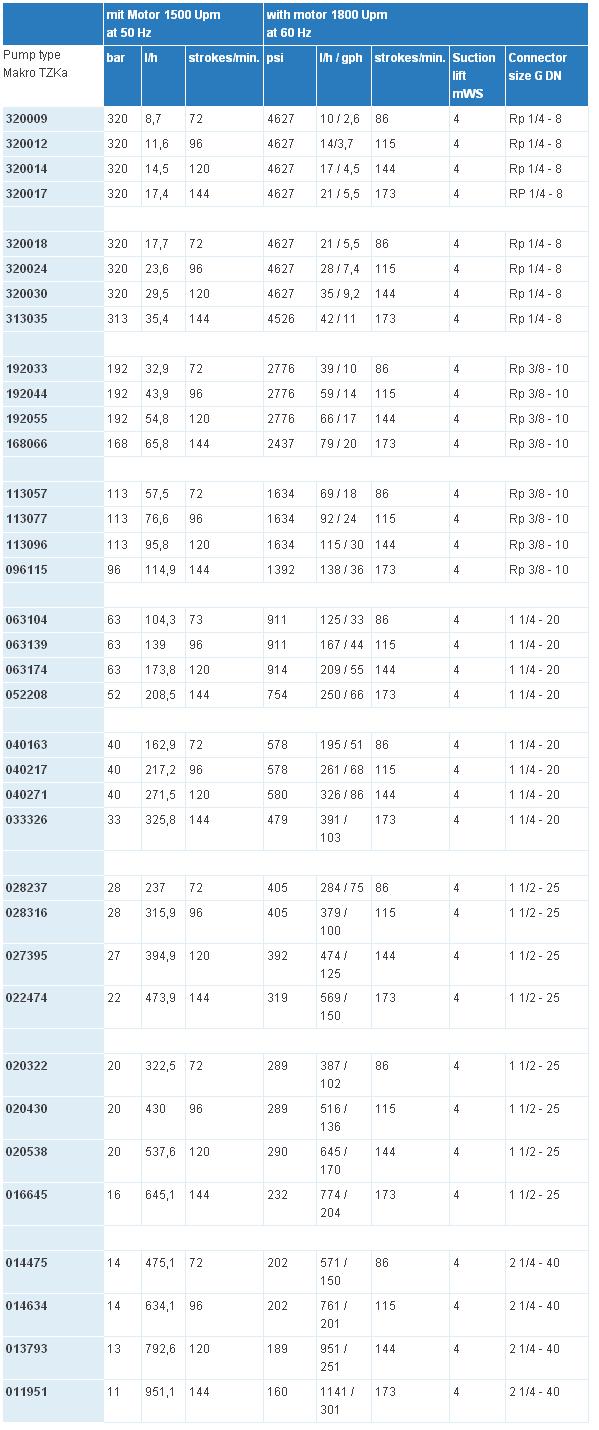

Performance range for the single pump: 9 -1,141 l/h, 320 -11 bar
Supplied as a single or dual-headed version
Push-pull operation of the liquid ends with dual head designs
Can be easily upgraded to a triple pump and with reduced back pressure to more pumps even on the customer’s premises
Independent of the main metering pump , other stroke counts can be achieved with the add-on pumps, as each TZ add-on pump has its own reducing gear
Standard drive: Dual wound three-phase motor 230/400 V, 50/60 Hz, 0.75 or 1.5 kW (2.2 kW or 3 kW also available as options) enclosure class rated IP 55 (optional ATEX-T3/T4), insulation class F
Gearing in 4 optional reduction ratios
Stroke length: 0 to 20 mm and adjustable to 0.5% precision using a gyrating cylinder
Stroke length setting: manual (optional with actuator or variable speed drive)
Gear housing: Cast aluminum, resistant to seawater, acrylic resin lacquer finish

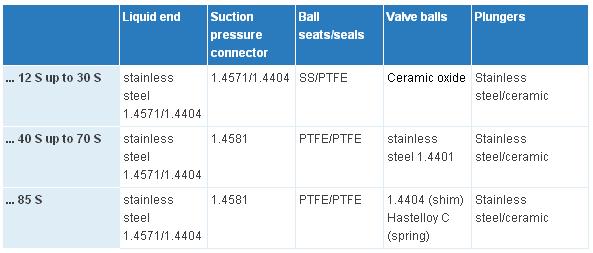

Liquid end materials: Stainless steel 1.4571
Dosing plungers in oxide ceramic or stainless steel with ceramic coating for protection against wear
Reproducibility of dosing better under defined conditions and correct installation ± 0.5 % (stroke length 10-100%)
Suction lift varies with density and viscosity of the medium as well as the connecting pipes and the number of strokes
