Applications :
Catalytic oxidation and retention of manganese in a granular MnO2 filter bed. A selected natural MnO2, controlled by OTV and the research center, with high % of MnO2 is applied. This selected natural MnO2 is used either as the sole filtering media or in combination with other media (in mixed filter beds or multi-layer filter beds).

Performance :
Residual manganese level in the effluent less than 5-10 µg/l

Advantages :
No chemical regeneration, mechanical backwash

Combined arsenic, iron and manganese removal using multi-media filtration

Operating principle:

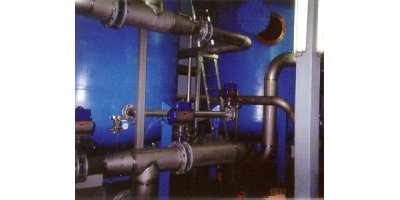

Depending on the plant capacity, filtration can be achieved within an open or pressure filter.

Optimum performance of the filtration process is ensured through regular backwashing with filtered water and air scour, evenly distributed through our proprietary nozzle underdrain.

Each filter is backwashed independently, hence the guarantee of continuous supply.

Performance:

• Innovative process (patented since 2002) ;
• Well adapted to As III and As V removal ;
• Suitable for variable concentrations of arsenic, iron and manganese ;
• No risk of residual iron ;
• No chemical dosing ;
• Minimum sludge production

Features and benefits:

Mangaflo™ Plus is an innovative process for the treatment of raw water contaminated by arsenic, iron and manganese.

This triple-media filtration system comprises:

• a bottom layer of manganese dioxide,
• a middle layer of sand and anthracite,
• a top layer of granular ferric hydroxide.
