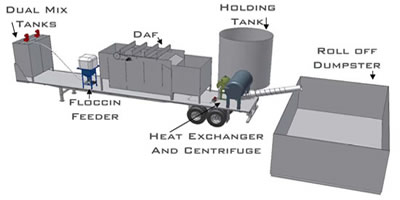

Integrated Engineers Inc. has developed a process to remove oil from water or salt water using a mobile 100 gpm DAF system.

The oily sludge that is skimmed from the DAF is stored in a Sludge Tank and then separated using a 3-phase centrifuge where 80% of the oil is recovered and recycled.

The oil can be free oil or emulsified oil before separation in the DAF. The 48 foot trailer mounted unit is mobile across country and leveled at the site for cleanup purposes such as Produced Water sites, natural gas fractionating, oil well drilling, as well as oil spill locations.

The process uses a sump pump to pump the oil/water to the Mix Tanks where the Floccin™ is added. The Flocced water is pumped to the DAF where it is separated by floating the oil/solids to the surface and skimmed off to the sludge Holding Tank. The treated water is returned to the point of origin.

The solids are pumped through a heat exchanger where it is heated to 150 degrees F and then separated 3 ways into oil, water and solids with the 3-phase centrifuge.

Click Here to Download Oil Recovery pdf...

For Purchase Inquiries Click Here...

Call 1-877-965-1577

Looking for an oil water separator? Integrated Engineers Inc. has specialized in top of the line liquid solid separation for oil industry wastewater treatment for many years. You'll also find our oil water separators work extremely well for all industries involving any kind of oils, fats or grease.

You can easily avail yourself of the fantastic ability of the unique Floccin™ flocculating products ability to Cut Costs, Increase Throughput, and Improve Compliance in all you oil water separation needs.

You achieve this through our wastewater optimization process, identify weak links, strengthen weak links, eliminate unnecessary steps, implement and go!

Click Here for Wastewater Optimization Info

Each oil water separator system is unique to you, tailored to you, and optimized for your specific needs. The systems are scalable to virtually any throughput, large or small.

Click Here to see our Portable Oil Water Separation Unit

Click Here to Watch our Oil Water Separation Presentation

Give us a call now to begin your optimization!

Call 1-877-965-1577 Toll Free
