Model 255-200 - Novalynx Evaporation Pan
(0 votes)

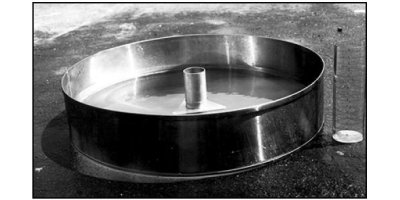

The Novalynx Class A Evaporation Pan is a standard National Weather Service Class A type for measurement of water evaporation. It is normally installed on a wooden platform set on the ground in a grassy location. The pan is filled with water and exposed to represent an open body of water. The pan is filled to within 2.5 inches of the top of the pan. The evaporation rate can be measured by manual readings or with an analog output evaporation gauge.
The Model 255-200 Evaporation Pan is a standard, National Weather Service Class A type for evaporation measurement It is normally installed on a wooden platform set on the ground in a grassy location. The pan is filled with water and exposed to represent an open body of water The pan is normally filled to within 25 inches of the top of the pan. The evaporation rate can be measured by manual readings or with an analog output evaporation gauge.
Specification
- Material: Low carbon stainless steel, passivated after welding
- Construction: Heliarc welded. 1/2' drain plug
- Size: 10' H x 47.5' Dia (254mm x 1026mm)
- Weight>shipping: 48lbs/59lbs (22kg/27kg)
- Shipping carton dimensions: 49' x 49' x 11' (can not ship via UPS)
