Model 3-500 - High Temperature Total Hydrocarbon Analyzer

The J.U.M Heated Total Hydrocarbon Analyzer Model 3-500 FID is our lowest cost alternative to continuously measure the total concentration of hydrocarbons within a gaseous sample. This can be ambient air, exhaust gases from a combustion process e.g. stack emissions, from any type of an industrial vent, from an internal combustion engine, or from any other emission containing hydrocarbons. The 3-500 is based on our time proven 300A FID platform of which we have sold thousands of analyzers. The 3-500 fully complies with EN 12619, EN 13526 (EU), with 2. BImSchV, 13. BImSchV and 17. BImSchV, (Germany) and with EPA Method 25A and Method 503 (USA). It can be used as a table top instrument but is ideally suited to be integrated in CEMs.

Features

  • Made in Germany
  • All critical components including pumps, sample filters, detectors and main electronics are manufactured in house
  • Fully heated to 190 degree C
  • Typical sensitivity 0.01 ppm CH4
  • Direct concentration (e.g. ppm) display allows to read up to 3 decade ranges without range change
  • Internal sample pump and air pump
  • Internal combustion air supply (No external air cylinder needed)
  • Very low fuel consumption (less than 20 cc/min @ 100% H2)
  • Disposable sample filter in rear panel
  • Automatic ignite capability (optional)
  • Automatic flame out alarm contact and fuel shut off
  • Sample pressure regulator not in contact with sample gas
  • Multiple range capability, 5 selectable ranges are standard
  • 19' rack mount unit, only 132 mm high

Applications

  • Stack gases (CEM) and all other Environmental and process applications
  • Air and gas scrubber efficiency
  • Process chemical gas analysis
  • Personnel safety
  • Solvent recovery
  • Catalytic converter and thermal combustor testing
  • Automotive and engine emissions
  • Fence line (perimeter) monitoring
  • Non-methane hydrocarbon measurements

Methane Only Option

The available Methane Only Option provides the capability to measure METHANE ONLY or TOTAL HYDROCARBONS. The choice is switch selectable from the front panel or by remote contact closure.

The J.U.M. Engineering HFID Model 3-500 is a low cost, compact 19' rack mount heated total hydrocarbon analyzer for high accuracy, sensitivity and stability.

The Model 3-500 uses our time proven hydrogen flame ionization detector (FID) in a heated oven to prevent the loss of high molecular weight hydrocarbons and to provide reliable performance in the analysis of trace to high concentration levels of contaminants in stack emissions, ambient air, high purity gases, air and other gases.

All sample wetted components, including the sample filter are housed in the heated oven. The sample filter is easy accessible from the rear panel. No special tools are required for changing the sample filter.

Our standard combustion air generator is built in. No extra bottles for burner air are needed.

Our time proven microprocessor driven engineering unit data display is standard and allows measurements over two decades without the need to change measuring ranges. Two analog outputs and one RS 232 data output are standard too.

Extra Features

  • Low operating cost and easy to operate
  • 24 bit microprocessor type direct reading ppm display with RS232 data output to cover 3 measuring ranges without range change
  • All sample wetted components are housed in heated oven, controlled at 190°C
  • Built-In sample and control/ burner air pressure pumps
  • Built-in combustion air supply, no extra air bottle needed
  • Easy to change 2 micron heated sample filter
  • Automatic flame out control with standard fuel shutoff valve
  • Fast response: less than 1 second
  • Low fuel consumption
  • Very selective
  • Microprocessor PID-type temperature controller

Extra Applications

  • Stack gas hydrocarbon emissions monitoring
  • EPA Method 25A compliance monitoring of source hydrocarbons
  • Continuous VOC in cooling tower monitoring (with optional El Paso Stripper)
  • Solvent recovery monitor of carbon bed break through
  • Catalytic converter testing
  • Carbon adsorption regeneration control
  • Measuring engine combustion efficiency and Raw exhaust vehicle emissions analysis
  • Hydrocarbon contamination monitoring in air and other gases
  • LEL monitor of solvent laden air

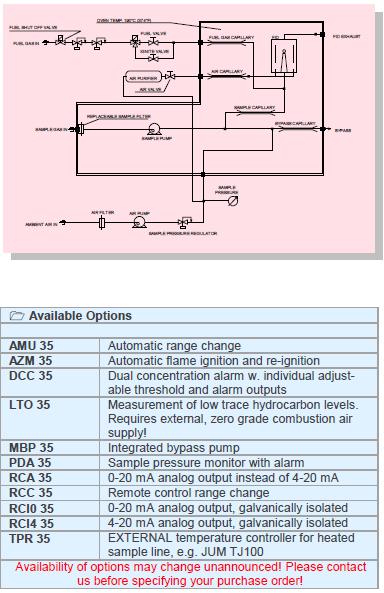

Principle of Operation

The Flame Ionization Detection (FID) method is used to determine the presence of total hydrocarbon concentrations in a gaseous sample. Burning hydrocarbon-free hydrogen in hydrocarbon-free air produces a negligible number of ions.

Once a sample containing hydrocarbons is introduced into this flame a very complex ionization process is started. This process creates a large number ions. A high polarizing voltage is applied between the two electrodes around the burner nozzle and produces an electrostatic field. Now negative ions migrate to the collector electrode and positive ions migrate to the high voltage electrode. The so generated ionization current between the two electrodes is directly proportional to the hydrocarbon concentration in the sample that is burned by the flame. This signal is measured and amplified by our electrometer-unit.

A sample pressure regulator provides a controlled back pressure at the sample capillary which gives admittance of a constant sample flow rate to the burner. This technique without the conventional back pressure regulator is used by J.U.M. Engineering for over 30 years to provide the highest possible sample flow rate stability and lowest maintenance. Our compactly designed flow control module for controlling the fuel and air flow rates via needle valves use high precision pressure regulators. The needle valves are factory adjusted and sealed to ensure the optimization of the burner.

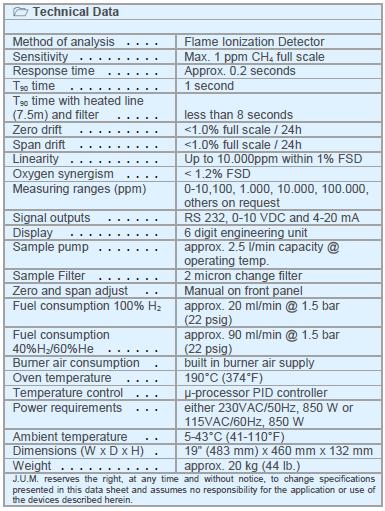

Technical Data
