Primozone ozone water treatment systems typically include ozone generator, compressor, oxygen generator or liquid oxygen (LOX), system controller, dissolution/reaction tanks and ozone destructors. A Primozone ozone water treatment system can produce ozone in quantities from 100 grams to over 10 kilos per hour.

At Primozone we are committed to offer our customer cost effective and environmentally friendly solutions for water cleaning. We have the knowledge and the cutting edge technology.

Dissolution/reaction tanks – We make it happend

The challenge for buyers of ozone generators is to make the dissolution work effectively. Primozone offers unique competence within the area and can customize dissolution systems for different applications or processes. We design dissolution and reaction tanks that are suited for the high ozone concentration provided by the Primozone ozone generator.

The Primozone ozone generators are oxygen fed and our systems work with either an oxygen generator or liquid oxygen, whichever suits the specific plant best. Thanks to automatic control over the levels needed to keep the desired redox value or ozone dosage, the oxygen consumption is low. This, together with the high ozone concentration results in an overall energy saving effect of up to 70%.

Primozone offers a unique system controller for safety, monitoring and control of all parts of the system. With the system controller it is very easy to operate and control the complete ozone water treatment system as well as monitoring system performance.

The system controller has a built in alarm function that will log and handle different production disturbances. The alarm function allows for alarm alerts via SMS-messages or to a higher control system. The system also allows for remote operation and remote support from Primozone’s service and support organization if needed.

It is the system controller that regulates the ozone production and connected to other control systems it is a powerful tool to control the redox level and ozone dosages.

The Primozone system controller registers data about ozone levels, gas pressure, gas flow and a number of other data that can be valuable to analyze the performance of the ozone generator system.

The Primozone ozone generator produces very high concentrations of ozone but uses less energy and less physical space. Read more about our ozone generator.

The Primozone’s ozone water treatment system is built to produce the correct ozone levels needed at every given time. However, due to legal requirements and as a measure of precaution, an ozone destructor is connected at the end of most systems provided by Primozone.

As a partner we can participate already from the point of designing a specific plant. We know that the whole is greater than the parts. A solution specifically designed for a specific solution is going to be both more efficient and cost effective. As the leading provider of the new generation of ozone water treatment systems Primozone is an excellent partner.

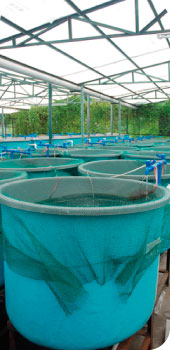

Recirculating aquaculture systems (RAS) operate by recusing the fish tank water and it is essential to control the water quality. For RAS fungus is a large problem and the load of organic material is high. The homogenous fish stock leads to a high risk of infection and problems with bacteria and viruses. Ozone is an efficient way to flocculate the organic material which then is filtered by mechanical and biological filters. At the same time the ozone disinfects the water and removes the fungus.

Benefits

• Flocculation of organic material
• Removes viruses, parasites and bacteria
• Less replacement water
• Environmentally friendly
• No residue
• Preserves the natural characteristics of the water

Ozone is very effective when it comes to treating water in municipal WT and WWT plants. Here ozone is the perfect substitute for chlorine and other chemicals. It is environmentally friendly and leaves no residue.

It is also very cost effective. The Primozone ozone generator systems produce a high concentration of ozone using a small amount of energy, which makes the life cycle cost surprisingly low.

Drinking Water

It is important to keep close control of drinking water quality. Ozone is here a powerful tool, and with a correctly designed water treatment system it destroys even vicious parasites like Cryptisporiduim.

Benefits

• Improves water clarity
• Controls color by removing humic acid, dye, effluent etc
• Destroys microorganisms such as bacteria, virus, parasites and algae
• Removes complex organic molecules
• Removes detergents and other household residue
• Controls levels of manganese and iron
• Removes pharmaceutical residues, endocrine disrupters (hormones) and pesticides

Wastewater

At municipal wastewater treatment plants ozone can be used to improve water quality when it comes to for example problems with filamentous sludge. Ozone also eliminates odor and disinfects outgoing water.

Benefits

• Odor removal
• Sludge bulking control
• Sludge reduction
• Removal of pharmaceutical residues and endocrine disrupters (hormones)
• Disinfection of outgoing water

Ozone is suitable for treating highly contaminated water. The oxidation potential in ozone (2.07V) is very high and as a result ozone is a very effective cleaner. Primozone’s ozone generators offer a proven high ozone concentration, but uses far less energy than conventional ozone generators. This makes the Primozone ozone generator very cost effective. Ozone is the perfect substitute to chemicals such as chlorine; it leaves no residue and is far less harmful to the environment than chemical cleaners.

Benefits

• Removal of heavy metals and cyanides
• Removal of phenols and sulfides
• Odor reduction
• Destruction of bacteria for increased biogas production
• Cleaning of contaminated water/process water/wastewater
• Odor removal from bio-gas/bio-diesel plants
• Cooling towers
• Removal of animal oils (fish oil)

A vast quantity of water is used in the process of producing paper and pulp. Ozone is an environmentally friendly alternative for cleaning process water and waste water as well as for bleaching the pulp.

Benefits

• Removes inert organic material
• More efficient process water recycling
• Prevents sludge production
• Eliminates colorant residue
• The most environmentally friendly process for pulp bleaching
• Cost efficient alternative to chlorine
• Enables fulfillment of stricter discharge limits and process water recycling without increasing costs

Pure water and disinfection processes are essential in the food and beverage industries. The quality of the water determines the quality of the product. The challenge is to ensure a consistently high water quality to ensure a consistent product quality. With ozone the natural taste and smell of the water is preserved. Chemical free disinfection of process equipment is another challenge, where ozone is an efficient alternative. The Primozone ozone systems provide a cost effective and reliable solution to water challenges within the food and beverage industry.

Benefits

• Consistent water quality
• Chemical free disinfection without harmful residue
• Environmentally friendly alternative
• Removes bacteria, viruses and mold
• Removes iron and magnesium
• Re-use of process water in other applications

Pharmaceutical production requires very pure water. No traces of microbiological or organic substances are allowed. A consistent water quality is vital. Primozone’s ozone systems provide a cost effective and environmentally friendly solution.

Benefits

• Consistent water quality
• Chemical free disinfection without harmful residue
• Environmentally friendly alternative
• Removes bacteria, viruses and mold
• Removes iron and magnesium

The supply of fresh water is essential on ships and vessels for a number of reasons. Long transportations cross open seas without any access natural fresh water sources require ways to control the micro-biology of the drinking water. Caring for our oceans and their ecological system wastewater needs to be treated before released into the sea. For the same reason the ballast water that travel from port to port, needs to be treated. With the Primozone ozone generator you get an efficient and reliable water treatment system that at the same time is small and energy-saving.

Benefits

• Ecologically sound – no residue into our seas
• Fresh drinking water with a consistent quality
• Treatment of waste and waste-water
• Treatment of ballast water
• Treatment of water after transport of live fish
