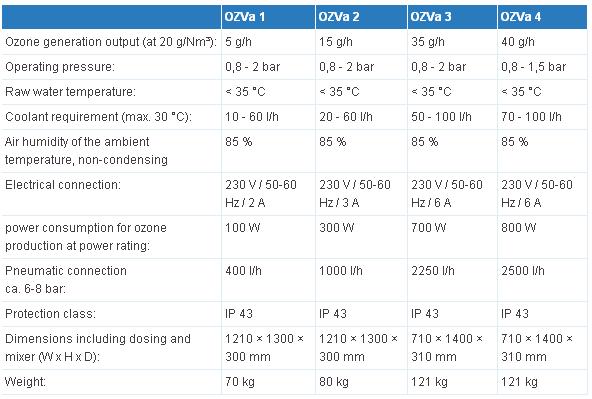

Operating gas: Air (OZVa 1 to 4)

The ozone is produced from the oxygen in the surrounding air and dosed at the same time. Air treatment is carried out as a drying process under variable pressure. In this way even if there is high ambient air humidity, reliable ozone production is guaranteed.

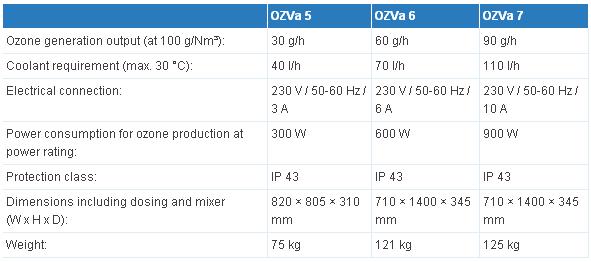

Operating gas: Oxygen (OZVa 5 to 7)

The OZONFILT OZVa 5-7 range is a new development based on tried and tested PSG technology, which through operation with oxygen enables ozone concentrations up to 150 g/Nm3. The ozone is produced in 1-3 generators depending on plant type from oxygen, which is provided in cylinders or special oxygen generators. The rated output of the individual generators is 30 g/h with 100 g/Nm3.

• Simple operation
• Complete fitting including integrated mixer
• No injector or pressure booster pump necessary
• Highly effective: Because of the special construction of the mixer, over 90% of the ozone is dissolved in the water
• Complete protection of the electrical components (high voltage transformer and performance level)  thanks to PCC technology (primary current controlled)
• Correct digital display of ozone output in “Grams per hour”
• Reproducible setting of any desired ozone quantity between 3% and 100% of the rated output is possible

• Treatment of drinking water without the formation of damaging by-products, breakdown of harmful water contents
• Removal of iron and manganese
• Drinking water filling
• Raw water treatment for the beverages industry
• Sterile filling of drinks into glass or PET bottles
• Treatment of swimming pool water for the removal of the “Chlorine odour” in indoor pools and improvement of water quality
• Water treatment for fish aquariums, dolphins, sea lions and hippopotamuses
• Microbiocide treatment in coolant cycles with considerably reduced AOX formation
