The new 'slim-line' PC-2200 functions exactly like the PC-2000 but has improved electronics and weighs only 6 lbs, less than half that of the PC-2000.

• Easy do-it-Yourself Calibration
• SuperCount Software
• Compact & Portable
• Quickly Counts & Sizes
• No Cross-contamination of Flow Lines
• Eliminates Sample Flushing

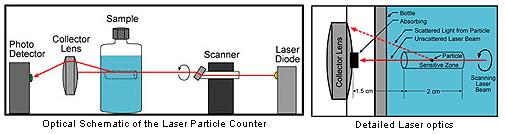

Utilizing the principle of 'near angle light scatter', a revolving laser beam passes through the walls of a glass container of a flow-thru cell. When it is directed through a central 'sensitive zone' the PC-2200 not only counts the particles in suspension, but tabulates their size as well. The analog signals generated by the light pulses are routed to a computer and digitized.

Spectrex provides three sealed calibration standards with each unit. Each standard contains a precise number of NIST traceable polystyrene microspheres of known size and are suspended in clean diluent. Calibration is efficient and can be completed within 10 minutes.

• Water Treatment Plants
• University Laboratories
• Pharmaceutical Manufacturers
• Oil Refineries and On-site drilling
• Bottling & Beverage Operations
• Oceanographic Studies
• Hydraulic Fluids and Oil QC
• Liquid Chromatography Solvent QC
• Cooling Tower and Waste Water Filter Efficiency
• Particle Agglomeration Studies
• Silts and Sediment Sizing
• Particle Settling Characteristics
• Corrosive Chemical and Solvent Sizing
• Vial and Ampule Inspection
• De-ionized Water and Acid Testing
• Cell Counting

Developed by Spectrex, the custom interfacing electronics and proprietary software provide an easy means of analyzing and saving data generated by the PC-2200. SuperCount provides instant sizing information and histogram of size distribution in addition to indicating:

• Absolute Counts
• Mean Size
• Mass Distribution
• Percentage Distribution
• Standard Deviation
• Total Suspended Solids

The dilution factor can be automatically computed to give absolute count for liquids as dense as sludge! SuperCount also is loaded with a special bonus program for hydraulic fluids and Phi classifications.

• Size: 4.75 ' x 14 ' x 4.5 ' (height with Light Tight Cover is 5 ')
• Typical bottle size: 15-60 mm inside diameter
• Bottle Material: transparent, scratch-free glass
• Weight: 6 lb.
• Power: 115v 60Hz (230v optional)
• Detectable Particle Size: from 0.5µm - 100µm
