ProMinent - Spectra Progressive Cavity Pumps
(0 votes)
ProMinent Spectra progessive cavity pumps are designed for metering fluid polyelectrolytes as concentrate or dilution. Capacity range 0,1 - 12 000 l/h, 12 - 3 bar. Progressive cavity pump for metering fluid polyelectrolytes as concentrate or dilution.
Versions
With speed controller, posistor probes and separate fan (for operation with frequency controller)
Advantages
- Pulsation-reduced metering
- Discharge flow proportional to speed
- Reversible conveying direction
Features
- Metering capacity up to 12 000 l/h
- Counter pressure up to 12 bar
- Stator made of FPM
- Rotor made of stainless steel Cr-Ni-Mo 17-12-2
- Floating ring seal
- Housing of 12/2 - 12/105 made of stainless steel
- Housing of 6/300 - 3/12 000 made of gray cast iron
Application areas
- Conveying of fluid polyelectrolytes as concentrate or dilution.
Operation safety
- Protect pump from dry running

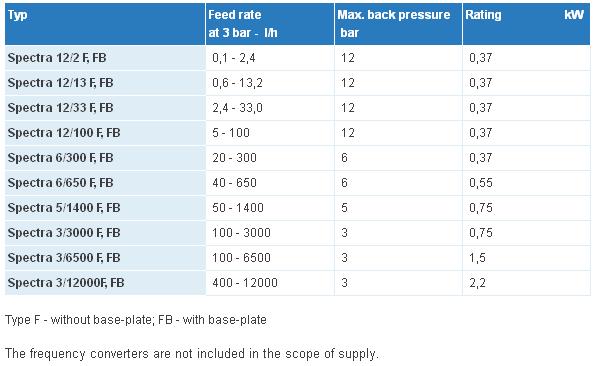

Technical Data
With posistor probe and separate fan for operation with frequency converter
|
