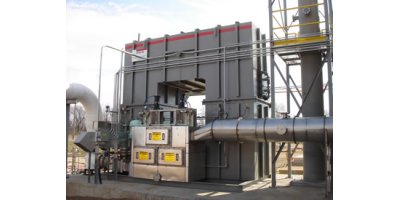

Regenerative Thermal Oxidizer (RTO)
Anguil's Regenerative Thermal Oxidizer destroys Hazardous Air Pollutants (HAPs), Volatile Organic Compounds (VOCs) and odorous emissions that are often discharged from industrial processes as a by-product of manufacturing. Anguil RTOs achieve emission destruction through the process of high temperature thermal oxidation, using temperature, residence time, turbulence and oxygen to convert pollutants into carbon dioxide and water vapor. Anguil systems allow emission destruction, while reusing the thermal energy generated to reduce operating costs.

How the RTO Works

VOC and HAP laden process gas is either pushed or pulled into the inlet manifold of the oxidizer via a system fan. Flow control or poppet valves then direct this gas into energy recovery chambers where it is preheated. The process gas and contaminants are progressively heated in the ceramic media beds as they move toward the combustion chamber.

Once oxidized in the combustion chamber, the hot purified air releases thermal energy as it passes through the media bed in the outlet flow direction. The outlet bed is heated and the gas is cooled so that the outlet gas temperature is only slightly higher than the process inlet temperature. Poppet valves alternate the airflow direction into the media beds to maximize energy recovery within the oxidizer. The high energy recovery within these oxidizers reduces the auxiliary fuel requirement and saves operating cost. The Anguil oxidizer achieves high destruction efficiency and self-sustaining operation with no auxiliary fuel usage at low concentrations.

Features

  • Completely shop assembled, pre-wired and tested prior to shipment
  • Skid mounted designs available for airflows up to 30,000 SCFM (47,313 Nm3/hr) and single unit systems up to 75,000 SCFM (118,283 Nm3/hr)
  • Up to 25% Lower Explosive Limits (LEL) RTO operation while self-sustaining as low as 3% LEL, reducing the need for auxiliary fuel
  • Low NOX burner designed to maintain temperature during full flow, no VOC process conditions
  • Programmable Logic Controller (PLC) based controls with digital data recorder and remote telemetry
  • Variable Frequency Drive (VFD) allows for high volumetric turn-down during idle or low process conditions
  • Bake-out feature to remove organic particulate build up
  • Hinged access doors for ease of maintenance
  • Gas trains are designed to meet FM Global or any international certifications such as CSA, TSSA, CGA and ATEX

Available Options

  • Complete 'turnkey' packages
  • Two chamber and multi-bed configurations
  • Forced or induced draft fan arrangements
  • Supplemental Fuel Injection (SFI) for increased fuel efficiency, flameless thermal oxidation and ultra low NOX emissions
  • Hot Side Bypass for high loading conditions
  • Diverse material of construction options for high temperature or corrosive applications such as halogenated compounds
  • Skid or remote mounted panels and enclosure rooms available for system controls
  • Acid gas scrubber module with a completely integrated control system
  • Alternative to add catalyst-Regenerative Catalytic Oxidizer (RCO)
  • Primary or secondary heat and Energy Recovery Solutions
  • Custom oxidizer design options to meet space restrictions

The Anguil RTO Advantage

  • Zero leakage, dual-disk Poppet valve design achieves 99+% destruction efficiency without a puff chamber or reliability concerns
  • Regulatory Compliance Guaranteed
  • System flexibility addresses a wide range of process conditions and easily controls multiple sources
  • Customized ceramic media with true thermal energy recovery up to 97%
  • Low pressure drop reduces electrical consumption
  • Competitive capital equipment cost
  • Rapid installation time on most systems
  • Small equipment footprint

Anguil`s Cost Effective Design

The RTO is designed as part of Anguil's broad line of technologically advanced, yet user-friendly, air pollution control products. Anguil's experience includes over 35 years of Regenerative, Recuperative, Catalytic and Direct-Fired oxidizer manufacturing, ranging in size from 100 to 500,000 SCFM (150-800,000 Nm3/hr). These oxidizers are used in conjunction with Rotary Concentrator Systems, Scrubbers, Soil Remediation Equipment and Ceramic Filter Systems for industrial processes. Each product line represents value-engineered systems with emphasis on cost minimization. All systems are designed for seamless integration into the process, optimal performance and trouble-free operation.

Operating Cost Reduction Strategies

  • Primary or secondary heat and Energy Recovery Solutions
  • Recirculation Systems
  • Oxidizer Service and Preventive Maintenance Evaluations (PME)
  • Recirculation Systems

The Anguil philosophy is to provide innovative pollution control technology including engineering, equipment manufacturing, installation, startup and post-sale service. Other benefits to working with Anguil:

  • 24 Hour customer service and support
  • Multiple technology offerings ensure unbiased recommendations
  • Complete aftermarket sales department
  • Over 35 years of oxidizer manufacturing experience
Anguil Environmental Systems, Inc.
Anguil Environmental Systems, Inc.
8855 N. 55th Street
Milwaukee ,  Wisconsin 53223

APPLICATIONS

VOC and HAP Abatement

As is the case for many industrial manufacturing processes, emissions are best destroyed through the use of thermal and catalytic oxidation technologies. Volatile Organic Compounds (VOCs) and Hazardous Air Pollutants (HAPs) are destroyed through the use of high temperature combustion with direct heat recovery. The harmful air pollutants are converted to heat, water vapor and carbon dioxide, creating a destruction efficiency greater than 99%.

Air pollution control for the automotive industry

Anguil`s engineering expertise has led to numerous successful air pollution control and emission control installations in the automotive manufacturing industry. From painting vehicles to engine test stations and tire manufacturing, we have supplied oxidizers and heat recovery systems to both tier 1 and tier 2 automotive plants.

Air pollution control for the chemical processing industry

Anguil thermal and catalytic oxidizer systems are used on various applications throughout the chemical processing industry for emission abatement. Our experience includes applications on tank vents, amine tail gases, API separators, acid gases, inert streams and more. Regulatory Compliance Guaranteed, Seamless Process Integration, Efficient Destruction Technologies, Advanced System Controls.

Air pollution control for the coating industry

Whether you are flow coating miniblinds, magnetic tape, aluminum cans, coils, wire or paper, Anguil`s 35 years of pollution control experience has provided unique insight into the wide variety of applications in the coating industry. Anguil`s experience leads directly to savings for our customers. Determining your solution begins by quantifying the problem with a thorough assessment of your emissions. Utilizing proven principles of design engineering, your system will evolve to incorporate air volume reduction...

Air pollution control for the composite & carbon fiber industry

Anguil is intimately familiar with emission capture, control and compliance hurdles that composite and carbon fiber producers face. We specifically address the needs of our carbon fiber customers with proprietary oxidizer designs for furnace and oven emissions. Our systems are recognized for energy efficient operation and destruction capabilities by the U.S. Federal Government at their Oak Ridge National Laboratories (ORNL). Anguil continues to help producers drive down energy consumption and emission output...

Air pollution control for the energy recovery industry

Rising fuel and electric costs, along with global warming concerns have changed the way industrial facilities regard energy consumption. Process equipment and air pollution control systems installed several years ago may not reflect the new energy conscious designs available today. We recommend analyzing these systems periodically to determine energy reduction opportunities. Recovering waste heat is one of the easiest and most utilized means of reducing energy demands at industrial facilities.

Air pollution control for the ethanol/biodesel industry

Renewable energy plants are expanding and developing at a significant rate in North America and throughout the world. In the United States, the Clean Air Act for reformulated gasoline (RFG) mandates a 2wt.% oxygen requirement, driving the demand for more production. Ethanol is the most viable additive because it is a clean-burning fuel produced from renewable, domestic biomass sources. However, the production of these fuels can result in unacceptable levels of volatile organic compounds (VOCs), carbon monoxide...

Air pollution control for the food and bakery industry

Anguil provides solutions for Ethanol Emission Reduction, Multiple Oven Balancing/Treatment, Grease, Oil & Particulate Control, Opacity, Odor and VOC control. Anguil`s Food and Bakery industry experience provides solutions for your emission control challenges. We have worked on a wide range of applications: achieving a high destruction level of ethanol from bakery ovens, chaff and particulate from coffee roasting, efficiently destroying grease from frying and rendering operations, handling smoke house emissions,...

Air pollution control for the metal decorating industry

Regenerative Thermal and Recuperative Oxidizers, Emission Concentrators, Permanent Total Enclosures (PTEs), Heat Recovery Systems. Environmental regulations for air pollution control at metal decorating and packaging facilities usually address can makers, base coil coaters, or metal parts and packaging manufacturers. Metal Decorating can be classified as any process where metal is formed, painted, or coated. Metal Packaging is generally considered processes involved in the production of light metal containers,...

Air pollution control for the natural gas processing industry

The natural gas industry has seen a significant increase in activity with the discovery of new shales and technologies throughout the world allowing for extraction of gases deeper in the earth. Historically, gas processing plants and Midstream facilities have used flares or other less-efficient oxidizer technologies for amine tail gas treatment, nitrogen rejection units and LNG (Liquefied Natural Gas) processes. These oxidizer technologies used are fairly effective for destruction, but they can consume a considerab...

Air pollution control for the paint and paint spray industry

Clients in the paint and paint spray industry are subject to tightened government regulations, but they also face several unique challenges in controlling their emissions. These challenges include airflow reduction, fugitive emissions, particulate control and reducing operating costs.

Air pollution control for the pharmaceutical industry

Guaranteed MACT Compliance, Continuous or Batch Process Control, Chlorinated HAP and Acid Gas Processing Experience. From pill coating and mixing operations to ETO sterilization, Anguil has had great success solving a wide range of emission control applications in the pharmaceutical industry. As companies struggle to comply with the EPA`s MACT (Maximum Achievable Control Technology) standards or international regulations, it is comforting to know that Anguil thoroughly understands your process. Our 35 years of...

Air pollution control for the printing, laminating & converting industry

Anguil has proven Regulatory Agency Compliance Solutions, Flexographic, Web Offset, Rotogravure Experience, Capture Fugitive Emissions, Guarantee Compliance, Eliminate Press Room Odors and Toxic Fumes. Achieving cost effective local regulatory compliance in the printing and converting industry requires a complete understanding of both regulatory standards and the printing process. Through experience, Anguil has developed unparalleled expertise in meeting unique requirements. We understand the effects of water...

Air pollution control for the remediation industry

As the pioneer in oxidation f chlorinated compounds, Global Technologies guarantees a 99% destruction rate efficiency with a user-friendly and trouble free design. Global Technologies is the groundwater and soil remediation division of Anguil Environmental Systems, formed shortly after the 1990 Clean Air Act targeted emissions associated with the extraction of polluted compounds from contaminated sites. Since then, our subsurface remediation equipment has been successfully applied on contaminated sites in North...
