Reverse Osmosis Plants For Seawater Desalination

We have designed the Series SW especially for the desalination of seawater for potable water supply.

Advantages

Advantages


  • Low operation costs through efficient operation with low pressure membranes of the newest generation (yields of up to 50%) and by using energy recovery systems of the newest generation for the recovery of energy from the concentrate flow.
  • Reduced maintenance and operation costs through best ProMinent production quality with high percentage of in-house production, use of durable, high-quality components and through matured service-friendly plant design.
  • Easy and safe operation thanks to the microprocessor control developed by ProMinent with integrated conductivity measuring and text indicator on graphic display.
  • Integration in customer-specific complete solutions from one source through exactly adjusted pre- and post treatment by ProMinent.




Application Areas

Application Areas


  • Decentral, public or private potable water supply
  • Beverage industry: potable water for bottling plants
  • Agriculture/gardening: irrigation of plants
  • Industry in general: rinsing water and process water

Features

Features


  • Permeate capacity up to 27 m³/h, on demand up to 60 m³/h
  • Mounted on high-quality stainless steel frames
  • High-pressure piping in extra high-quality corrosion-resistent stainless steel
  • Use of the newest generation of low pressure membranes
  • High system-salt-rejection up to more than 99%
  • Yield of raw water up to 50%
  • Energy recovery system on the basis of Pelton-turbine or pressure transformer, available on demand
  • Integrated semi-automatic cleaning conception and automatic rinsing systems for longer lifetime of the membranes, included as standard feature
  • Central control of the entire plant through company-own microprocessor control with graphic display and integrated temperature compensated conductivity measuring
  • Integration of the pre- and post treatment, of a remote control for a PLC and a remote inquiry into a PLC are possible on demand
  • Plants integrated into standard transport containers are available in all versions

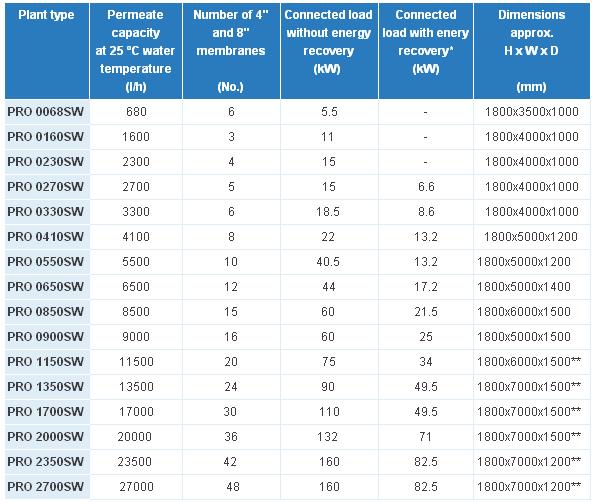

Technical Data

Technical Data




  • energy recovery by pressure exchanger
  • separate high-pressure pump and cleaning tank

On request, these plants can also be supplied with different membrane types for other salt rejection, and with measurement and control equipment (conductivity, redox potential, pH value measurement) and dosing equipment (in pretreatment and post-treatment).


ProMinent Dosiertechnik GmbH
ProMinent Dosiertechnik GmbH
Im Schuhmachergewann 5-11
Heidelberg, Baden-Württemberg; 69123
