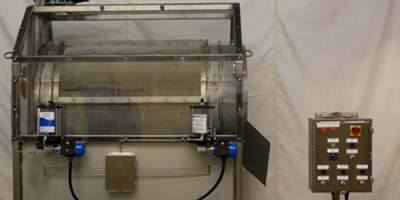

Rotary Drum Screen
(0 votes)
Rotary Drum Screen Separator
Integrated's Internally Fed Rotary Dewatering Screens
Our internally fed dewatering screens are ideal for the removal of industrial wastewater solids and contaminants down to 0.25 mm openings.
The rotary screens remove the inorganics as well as the organics from the waste streams.
With the addition of the Floccin™ products, the screen can perform equally to conventional clarifiers and/or DAFs for removal of wastewater contaminants.
For 0.25 mm (70 mesh) screen opening:
| Size | 3x4x70 | 3x8x70 | 4x8x70 | 4x12x70 | 6x12x70 | 6x16x70 |
|---|---|---|---|---|---|---|
| US gpm | 100 | 200 | 300 | 500 | 700 | 1000 |
For 0.5 mm (35 mesh) screen opening:
| Size | 3x4x35 | 3x8x35 | 4x8x35 | 4x12x35 | 6x12x35 | 6x16x35 |
|---|---|---|---|---|---|---|
| US gpm | 200 | 400 | 600 | 800 | 1,200 | 1,800 |
For 1.0 mm (18 mesh) screen opening:
| Size | 3x4x18 | 3x8x18 | 4x8x18 | 4x12x18 | 6x12x18 | 6x16x18 |
|---|---|---|---|---|---|---|
| US gpm | 400 | 800 | 1,200 | 2,000 | 3,000 | 4,000 |
For 2.0 mm (10 mesh) screen opening:
| Size | 3x4x10 | 3x8x10 | 4x8x10 | 4x12x10 | 6x12x10 | 6x16x10 |
|---|---|---|---|---|---|---|
| US gpm | 800 | 1600 | 2,000 | 3,000 | 4,000 | 6,000 |
* Flows are in US gallons/minute
Dewatering Screen Features:
- All 304 or optional 316L stainless construction
- Individually Removable screens
- Sealed and shielded L-100,000 hour bearings with Auto lube system
- Chain drive with variable speed control
- External Spray bar with adjustable ON/Off/Duration Timer
- TEFC Motor
- Chain lube system
- Gasketed and hinged access hatches
Click Here to Get A Quote For Your Rotary Dewatering Screen...
Call 1-877-965-1577 Toll Free
