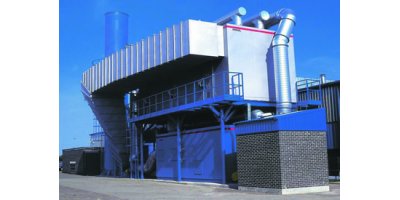

The high volume, low concentration airstream passes through a rotor concentrator wheel where the VOCs are stripped from the air and adsorbed onto the wheel. The majority (approximately 90% of the total air volume) of this clean air is then exhausted to atmosphere. A small portion of the air stream (approximately 10% of the total air volume) is heated to an elevated temperature to be used as desorption air. The concentrator wheel rotates continuously, transporting adsorbed VOCs into a desorption section. In the desorption section, the organics are desorbed from the adsorptive media with the low volume heated airstream. This low volume, high VOC-laden air is then processed by an oxidizer.

The Rotor Concentrator with Oxidizer is often the most cost effective technology for processing high volume, low concentration streams. While the capital cost of a system is competitive with other technologies, the true savings is realized in reduced operating costs.

• Completely shop assembled, pre-wired and test prior to shipment
• Zeolite adsorbent wheel minimizes risk of fires
• Low pressure drop, typically 3'-5' W.C.
• Destruction efficiencies greater than 95%
• Concentration ratios as high as 20:1
• Continuous operation as opposed to a batch type process
• Concentrator wheel, desorption air heat and oxidizer integrated as a single system, simplifying installation and control scheme.

• Various Zeolite options to prevent polymerization
• Complete turnkey packages including all utilities and ductwork
• High-efficiency filter plenums
• Numerous options for source of desorption air heat
• Regenerative Thermal Oxidizers (RTO's), Thermal Recuperative Oxidizers and Catalytic Recuperative Oxidizers can be supplied to treat the concentrated stream
• Systems designed to process Halogenated emission streams
• Forced and induced draft arrangements

• Regulatory Compliance Guaranteed
• Complete Quality Assurance test prior to shipment
• Engineering experience and flexibility to address a wide range of process conditions and applications
• Proven system design with numerous installations all over the world
• Competitive capital equipment costs
• Expedited project schedules are available

The rotor concentrator is designed as part of Anguil's broad line of technologically advanced, yet user-friendly, air pollution control products. Anguil's experience includes over 30 years of Regenerative, Recuperative, Catalytic and Direct-Fired oxidizer manufacturing, ranging in size from 100 to 500,000 SCFM (150-800,000 Nm3/hr). These oxidizers are used in conjunction with Scrubbers, Soil Remediation Equipment and Ceramic Filter Systems for industrial processes. Each product line represents value-engineered systems with emphasis on cost minimization. All systems are designed for seamless integration into the process, optimal performance and trouble-free operation.

• Primary or secondary heat and Energy Recovery Solutions
• Recirculation Systems
• Oxidizer Service and Preventive Maintenance Evaluations (PME)

The Anguil philosophy is to provide innovative pollution control technology including engineering, equipment manufacturing, installation, startup and post-sale service. Other benefits to working with Anguil:24 Hour customer service and support

• Multiple technology offerings ensure unbiased recommendations
• Complete aftermarket sales department
• Over 30 years of oxidizer manufacturing experience
