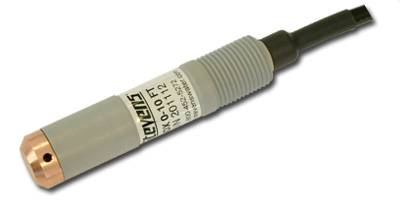

The SDX comes equipped with user specified vented cable lengths. The vent provides an atmospheric reference for the sensor, which is necessary for ensuring the highest possible accuracy when making a level measurement.

The SDX features one 4-20 mA analog output signal that corresponds linearly to range. Compatible with existing power and data logging instruments, the SDX can easily be deployed for data collection at remote monitoring sites.

Applications:

• Well monitoring
• Ground water monitoring
• Surface water monitoring
• Soil and groundwater remediation
• Tank level monitoring
• Environmental impact and research studies
• Harsh environments

Features:

• Accuracy: +/- 0.25% FS
• Ranges: 0-5 ft, 0-10 ft, 0-35 ft, 0-50 ft
• Vented cable, 2 wire, with drain
• Weighted brass nose cone, anti-fouling
• Threaded ends for tank and pipe mounting (see data sheet for details)
• Operating temp: -40 degrees F to +185 degrees F (-40  C to +85  C)
• Fully potted electronics
• Output: 4-20 mA
• Power: 14 - 35 VDC
