Grindex - (3.9 kW - 3 or 4) - Senior Inox Electrical Submersible Sludge Pump
From 50Hz Pumps - Corrosive Fluids
(0 votes)
The Inox version of the sludge pumps will handle all kinds of sludges reliably thanks to the vortex recessed-impeller design. With its impressive allowed pH range, from 2 up to 11, it is hard to find an application that can't be handled by the Inox pumps. The modular design drives service cost down. All materials in contact with the liquid are made out of AISI 316 stainless steel or better.
DOWNLOADS
| Grindex - (3.9 kW - 3 or 4) - Senior Inox Electrical Submersible ... | |
| Grindex - (3.9 kW - 3 or 4) - Senior Inox Electrical Submersible ... |
Pump type:
Electrical submersible
Three-phase
Classification:
Class IP 68
Maximum submersion: 20 meters
Cable:
20 meters, SUBCAB:
3-phase: 4G2.5mm2
Discharge:
3' or 4' - hose, ISO-G or NPT
Limitations:
pH 2-11
Maximum liquid temperature: 40°C

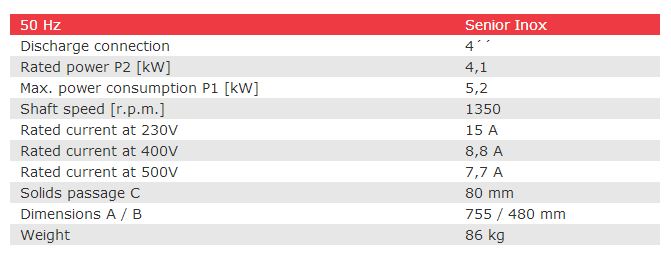

Specification
|
APPLICATIONS
