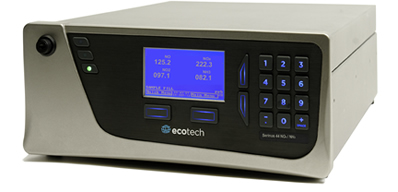

Serinus - 44 - NO/NO2/NOX/NH3 Multi Gas Analyzer

The Serinus 44 NO/NO2/NOX/ NH3 multi gas analyzer uses gas phase chemiluminescence technology, combined with an external thermal converter, to measure NO, NO2, NOX and NH3 in ambient air (LDL <0.4ppb, Range 0-20 ppm). Combining several new technical advances and innovative features, the Serinus delivers Ecotech's renowned performance and excellent value.

• Guaranteed performance with a two year warranty.
• Minimises time spent on site performing maintenance through superior remote instrument control, diagnostic viewing and calibration.
• Comprehensive data logging and remote viewing of over 200 operational parameters.
• Versatile interfacing through RS232, USB, Bluetooth, analogue and optional TCP/IP.
• Easier setup through an intuitive menu system with “Quick Menu”, advanced GUI and a new larger keypad with tactile keys.
• Instant display of operational status using illuminated traffic lights on the front panel.
• Removable flash memory stores 10 years of data, including up to 12 individual parameters and event logs. Operational parameters can also be transferred to memory for easy retrieval.
• Latest firmware updates can easily be installed using the USB flash memory drive.
• Programming, viewing, downloading and emailing of data is made even simpler using Bluetooth connectivity combined with the “Ecotech Serinus Remote” Android App.
• Enhanced operator safety through the use of 12VDC internal voltages.
• Reduced cost of spare parts, accessories and consumable items through extensive use of standard components across the Serinus range.
• Improved rack slide design makes accessing internal components and removing the analyser from a rack cabinet easy.
• AQM system power usage can be reduced due to the instrument’s low power demand and its ability to operate over a wide temperature range.

Range: 0-20 ppm
LDL: < 0.4 ppb with Kalman filter active
Noise: < 0.2 ppb with Kalman filter active
Temperature range: 0 to 40°C
Sample flow rate: 500 cc/min (optional 750cc/min)
Weight: 21.2 kg (bench), 16.2 kg (rack)
Dimensions: 440 x 178 x 620 mm (w x h x d), 3.5 RU
Power: 99-132 VAC, 198-264 VAC 47-63 Hz

Data Logging

• Internal memory that stores data in the following formats:
• Instantaneous data from: 1, 3, 5, 10, 30, or 60 minute intervals
  • Average data from: 1, 3, 5, 10, 15, 30 minutes, 1, 4, 8, 12, or 24 hours
  • Data storage of 8 years, 1 minute data on 1 gigabyte memory
