Shimadzu - SIL-10AF SIL-10AP - Liquid Chromatographs Autosamplers For HPLC Systems

SIL-10AF features
Sample injection time is only 40 seconds for a 10µL injection. When flow line rinsing after injection is included, the unit is ready for the next injection in about 2 minutes. As a result, high throughput repeat analysis is possible, and sample preparations such as dilution and mixing can be performed rapidly. As well as being a multi-purpose autosampler, it is also capable of high speed sample injection. In particular, the time required for sample preparation such as dilution and mixing has been shortened substantially. Furthermore, sample processing capability is greatly enhanced since two 96-well titer plates (standard and deep-well) can be used. Injection repeatability, essential for quantitative analysis, is excellent, producing highly reliable analytical results.

SIL-10AP features
Injection of samples up to 5mL is possible in its standard setup. For this reason, this autosampler is suitable for preparative LCs and sample enrichment systems. Exhibiting high performance in linearity and, repeatability, its quantitative capability is excellent when injecting both large and small volumes.

SIL-10AF/SIL-10AP common features
Flexibly adapts to a variety of applications

• Sample vials ranging from microtiter plates to 13mL vials are supported*, and can be used in a wide range of applications from analytical to semi-preparative work.
• Syringe measured injection, a fixed volume loop injection which minimizes cross-contamination and has excellent repeatability.
• Flexibility to sample preparation by utilizing dilution and reagent addition routines.

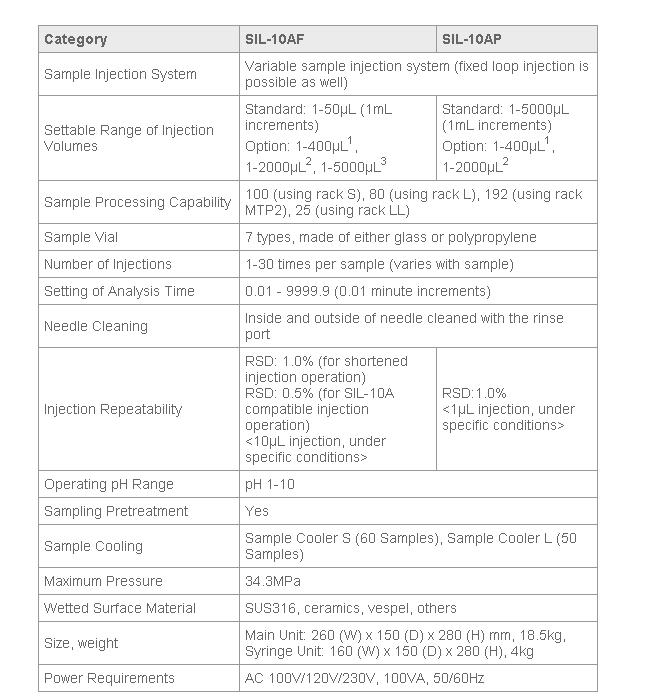

  • The settable range of injection volumes with the SIL-10AF is 1-50µL. Using the options this can be changed to 1-400µL, 1-2000µL, 1-5000µL
  • The settable range of injection volumes with the SIL-10AP is 1-5000µL. The 13mL vial rack (which allows 25 vials to be set) is standard equipment. It can be changed to SIL-10AF specifications using the options.
