0 Sigma/ 2 - Plunger Metering Pump

(0 votes)

The Sigma/ 2 motor plunger metering pump with the solenoid diaphragm metering pumps type Sigma/1, Sigma/2 and Sigma/ 3 make up a universal product family. In this way the performance range covers 2 to 1,030 l/h, with one standard operating concept, control concept and spare parts management. All three pumps are available in the basic version without their own internal electronic system and as the microprocessor version for a fast and reliable adaptation to changing dosage requirements.

DOWNLOADS

Dosing of Chemicals Brochure

» View All

Advantages

High processing quality: Reproducibility of dosage better than ±1%
Simple operation: Immediate adjustment and monitoring of dosage performance in full text via the large illuminated LC display (control version)
Smooth connection to complex processing management systems through optional fitting with PROFIBUS DP interface (control version)
Simplified spare parts management and less stock storage with the same availability of pumps within the Sigma product family
Less training expenditure for operators when using the Sigma product family because the use the same operating mode

Contact Now/Request quote

Application Areas

Metering of chemicals and additives in proportion to volume in treatment of boiler feed water

Contact Now/Request quote

Features

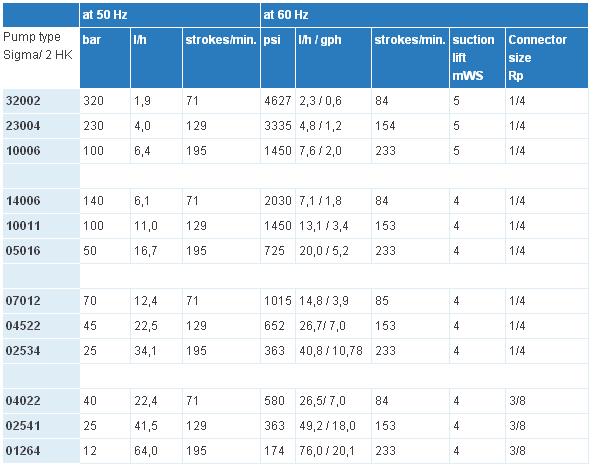

Performance range 2 - 76 l/h, 320 - 12 bar
High strength metal internal housing for parts which are subjected to stress as well as additional plastic housing for corrosion protection
Stroke length: 15 mm, adjustable using self-adjusting knob at 0.2% stages

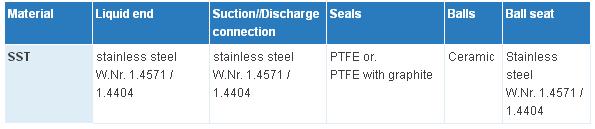

Metering head materials: Stainless steel 1.4571/1.4404
Reproducibility of metering better under defined conditions and correct installation ± 1% (stroke length 30-100%)

Features Basic Type (S2Ba)

Wide selection of drive variations: Three-phase standard motor, single-phase alternating current motor, motors for use in the EXe and EXde area, different flange designs for use with customer-specific motors.
Protection class IP 55 (optional ATEX-T3/T4)
Stroke length setting: manual (optional with actuator or variable speed drive)

Features Control Type (S2Ca)

Microprocessor control: Optimum combination of rotational control and stop and go operation i.e. works in a wide control field with individual fine adjustment
Simple setting of the individual pump functions with five programme keys
Large backlit LC display
Full text display of the pump capacity in l/h or US gal/h
3 LED display for operational, warning and error signals
Alarm or timer relay
Control via contact or analogue signals (e.g. 0/4-20mA)
Optional integrated 2-Week-Process-Timer The intelligent alternative to the time switch clock
Protection class IP 65
Interface for PROFIBUS-DP
