Ecologix - Special Activated Carbon

Ecologix provides several additioanl special grades of activated carbon for those special applications where either standard or our impregnated carbon products are not sufficient.

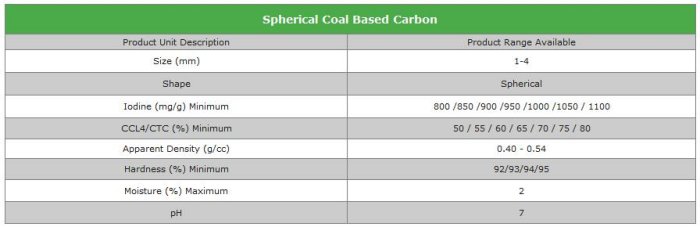

Spherical Coal Based Carbon

  • Product Unit Description : Product Range Available
  • Size (mm) : 1-4
  • Shape : Spherical
  • iodine (mg/g) Minimum : 800 /8S0 /900 /950 /1000 /1050 / 1100
  • CCL4/CTC(%) Minimum : 50 / 55 / 60 / 65 / 70 / 75 / 80
  • Apparent Density (g/cc) : 0.40 - 0.54
  • Hardness (%) Minimum : 92/93/94/95
  • Moisture (%) Maximum : 2
  • PH : 7

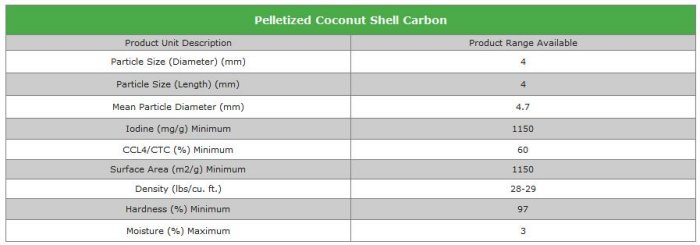

Pelletized Coconut Shell Carbon

  • Product Unit Description : Product Range Available
  • Particle Size (Diameter) (mm) : 4
  • Particle Size (Length) (mm) : 4
  • Mean Particle Diameter (mm) : 4.7
  • Iodine (mg/g) Minimum : 1150
  • CCL4/CTC(%) Minimum : 60
  • Surface Area (m2/g) Minimum : 1150
  • Density (lbs/cu. ft.) : 28-29
  • Hardness (%) Minimum : 97
  • Moisture (%) Maximum : 3

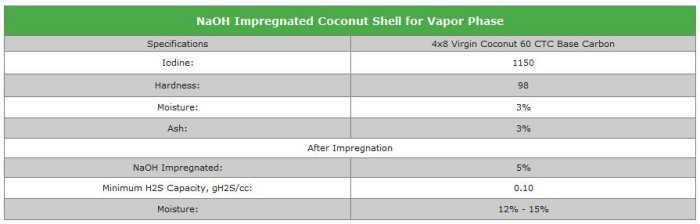

NaOH Impregnated Coconut Shell for Vapor Phase

  • Specifications : 4x8 Virgin Coconut 60 CTC Base Carbon
  • Iodine : 1150
  • Hardness : 98
  • Moisture : 3%
  • Ash : 3%
  • After Impregnation
  • NaOH Impregnated : 5%
  • Minimum H2S Capacity, gH2S/cc : 0.10
  • Moisture : 12% -15%

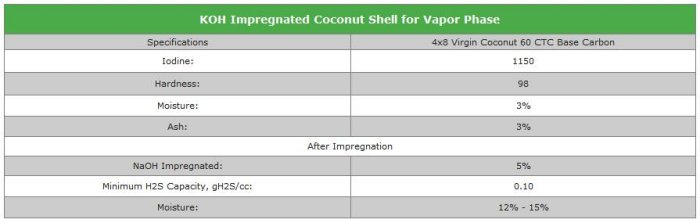

KOH Impregnated Coconut Shell for Vapor Phase

  • Specifications : 4x8 Virgin Coconut 60 CTC Base Carbon
  • Iodine : 1150
  • Hardness : 98
  • Moisture : 3%
  • Ash : 3%
  • After Impregnation
  • NaOH Impregnated : 5%
  • Minimum H2S Capacity, gH2S/cc : 0.10
  • Moisture : 12% -15%

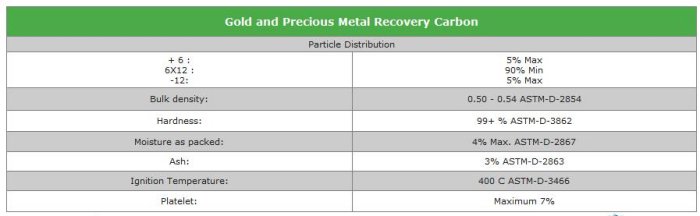

Gold and Precious Metal Recovery Carbon

  • Particle Distribution:
    • + 6 : 5% Max
    • 6X12 : 90% Min
    • -12 : 5% Max
  • Bulk density : 0.50-0.54 ASTM-D-2854
  • Hardness : 99+ % ASTM-D-3862
  • Moisture as packed : 4% Max. ASTM-D-2867
  • Ash : 3% ASTM-D-2863
  • Ignition Temperature : 400 C ASTM-D-3466
  • Platelet : Maximum 7%
Ecologix Environmental Systems, LLC
Ecologix Environmental Systems, LLC
11800 Wills Road Suite 100
Alpharetta ,  Georgia 30009
