The 2-chamber batch systems are separated into two chambers. While one chamber is filled, matured polymer solution can be withdrawn from the other. The mixing of newly prepared polymer with matured polymer is excluded (no product entrainment).
DOWNLOADS
| Waste Water Brochure | |
| The Effective Polymer Preparation And Metering Systems Ultromat ... |
Advantage
- No product entrainment
- High operation comfort
- Easy commissioning
Features
- Issue quantities 400 l/h up to 4 000 l/h
- Maturing time at maximal issue quantity approx. 60 minutes
- Control with integrated operation panel and display
- Exact observation of the solvent concentration thanks to proportional control
Operation safety
- Water supply with continuous water pressure > 5 bar
Plant types
- ATP/96: 2-Chamber Batch System for powdery flocculation additives
- ATFP/96: 2-Chamber Batch System for powdery and fluid flocculation additives
- AFP/96: 2-Chamber Batch System for fluid flocculation additives

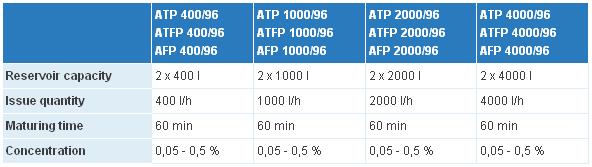

Technical Data
|
